Universal Narrow Base Tractor Seat Mechanical Suspension

$289.95
Unit price per

Shipping calculated at checkout.

Mechanical Seat Suspension for JD, AC, IH, FD, NH, MF, Cat, IR, CIH

For Multiple Applications Including But Not Limited To:

Seats in Tractors, Lawn Mowers & Small Equipment Applications.

Easily swap out the old or add this suspension in your equipment. Over time & with a lot of use, it is not uncommon for them to wear out or get damaged.

This Mechanical Suspension is a direct replacement for most original Mechanical Suspensions for a boost in vibration reduction, making for a more comfortable ride in even the most demanding conditions.

Suspension Stroke 4" / 100mm

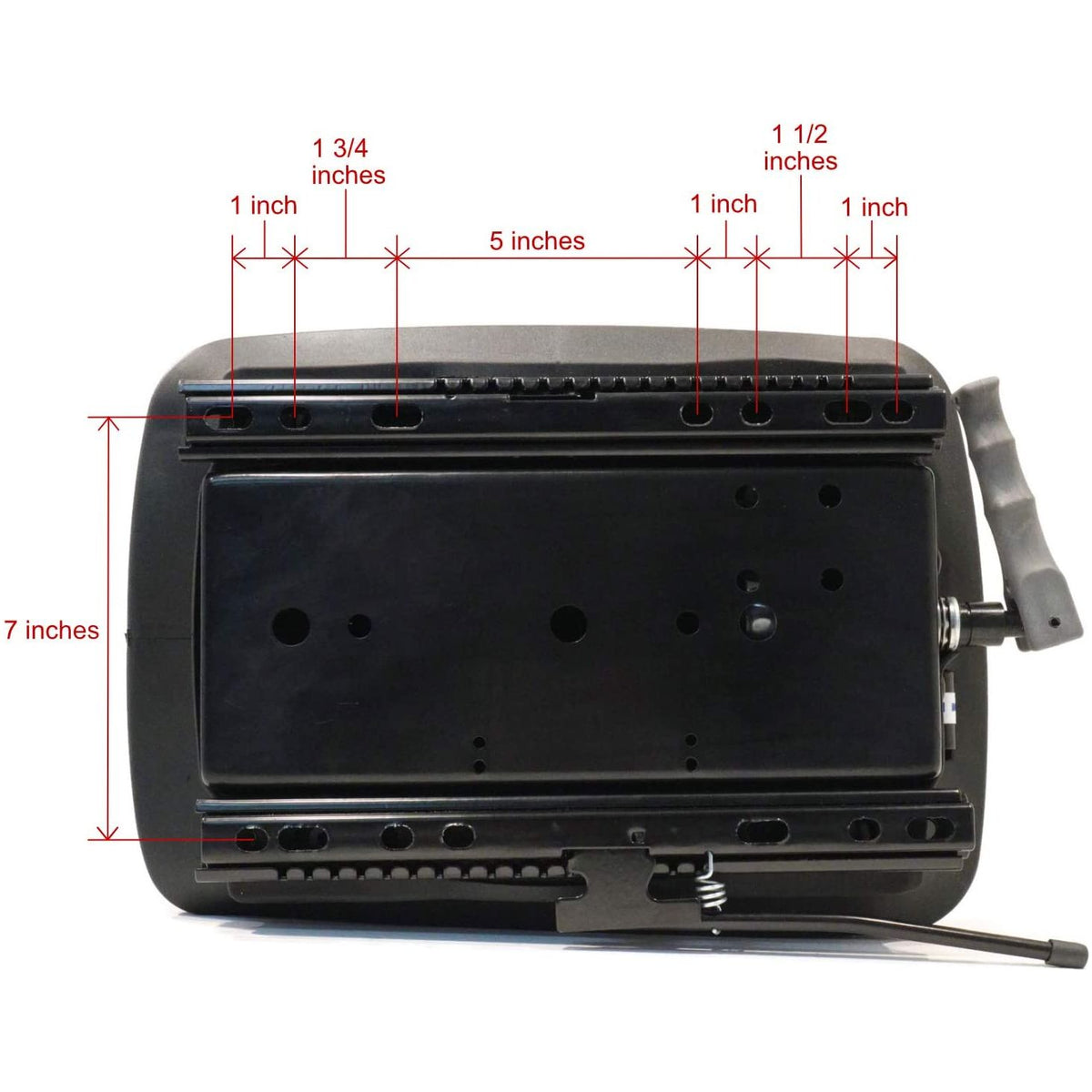

Slide Track Fore & Aft Travel Is 6" / 150mm, C to C rail to rail is 6.75"
Weight Adjustment 110 - 330 lbs. / 50 - 150kg

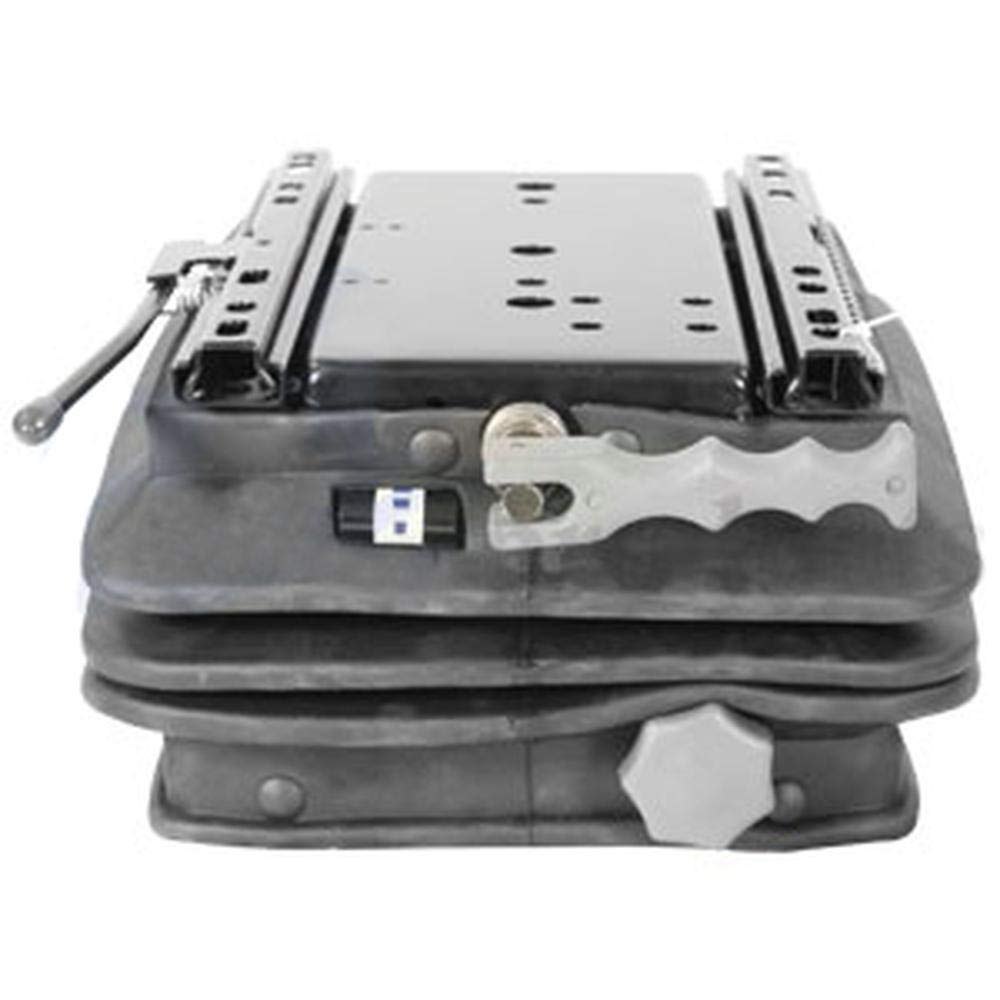

Black long lever is for the slide track adjustment
Gray handle lever in the middle is for adjusting the weight

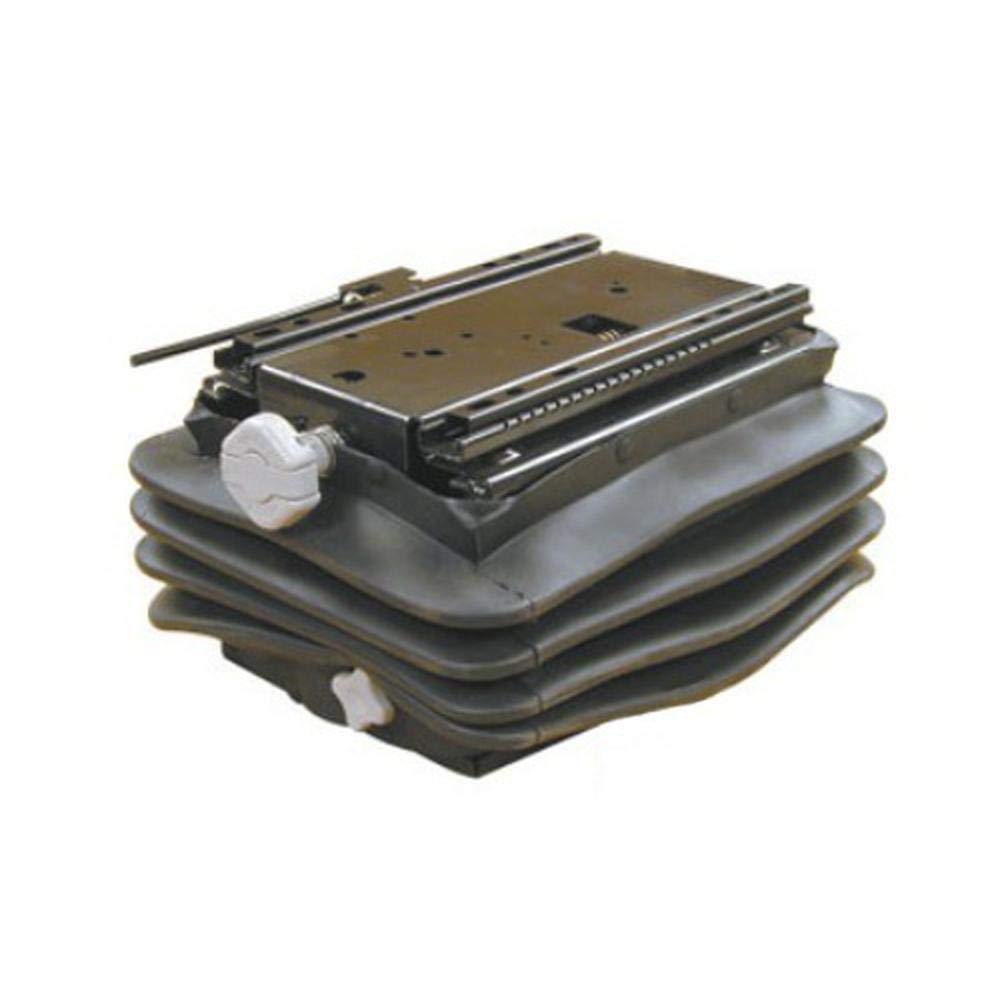

Gray star shaped knob is to adjust suspension up or down

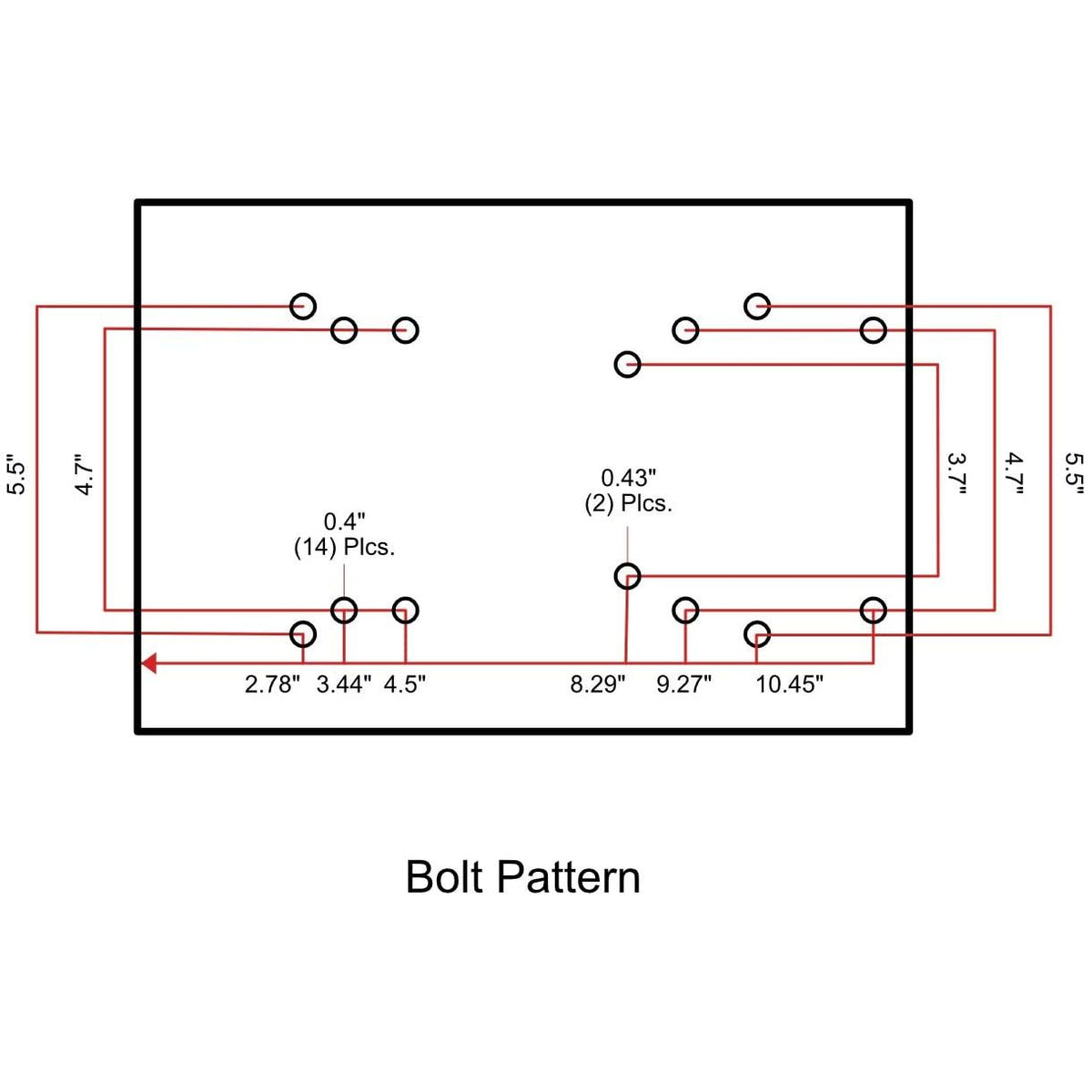

Please note some applications may require to drill new holes in existing mounting platform, or fabricate brackets to install this seat suspension.

This Seat Suspension will fit a lot of models of AGRICULTURAL, TURF, CONSTRUCTION, COMMERCIAL, and INDUSTRIAL EQUIPMENT.

Item # MS139
