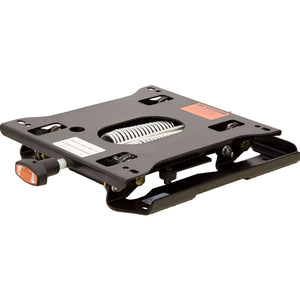

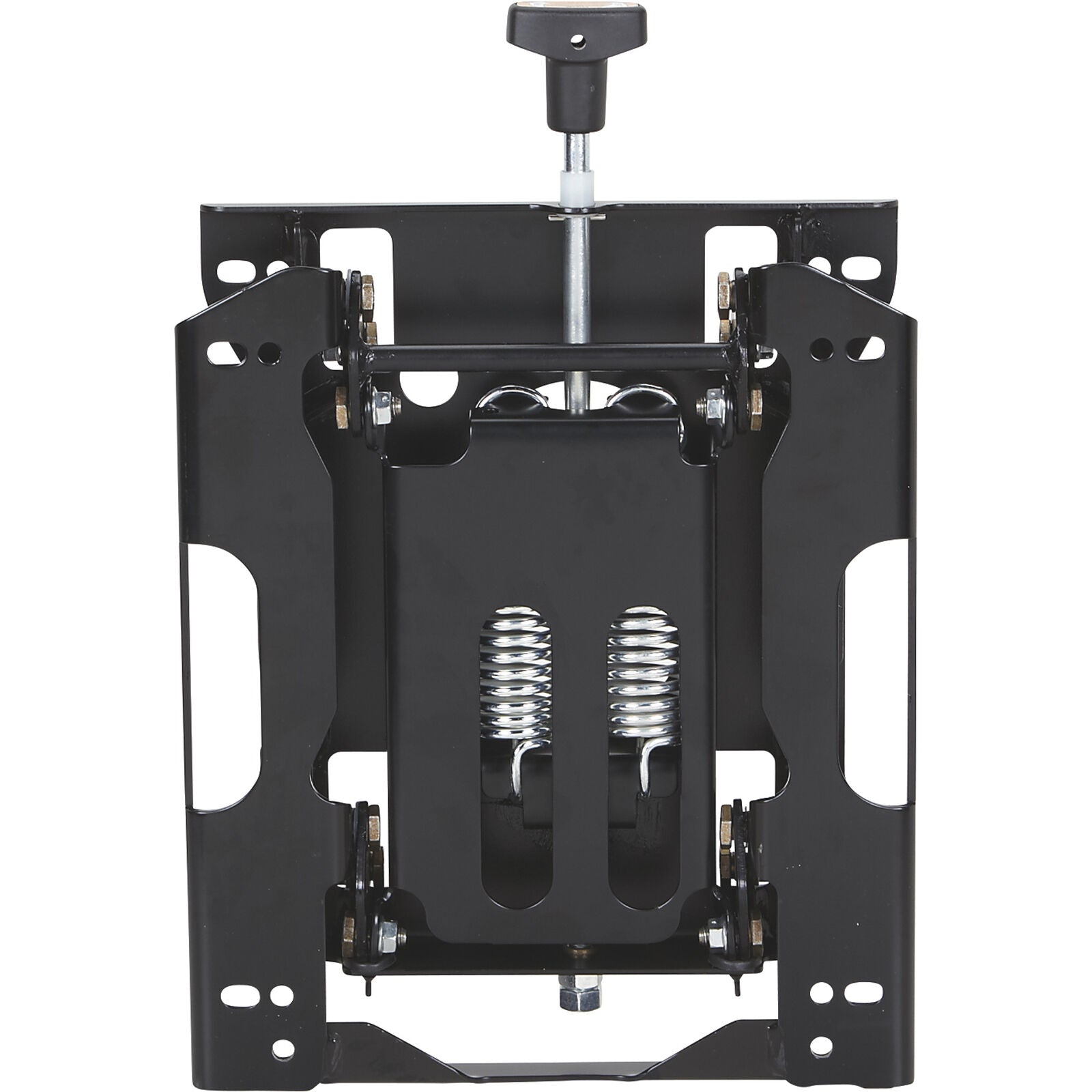

Tractor Seat Ultra Low Mechanical Suspension

  • $298.95
    Unit price per
Shipping calculated at checkout.

Mechanical Suspension for JD, AC, IH, FD, NH, MF, IR, Cat, CIH

For Multiple Applications Including But Not Limited To:

Tractors, Implements, Mowers & Heavy Construction / Industrial equipment applications.

Ultra Low Mechanical Suspension as a direct replacement where vertical height is limited to improve comfort, performance and productivity in your ag or construction equipment, ensuring that you have the smoothest ride possible.

Ideal for vertically limited applications
Base width of 12.88"
Wide base provides extra stability

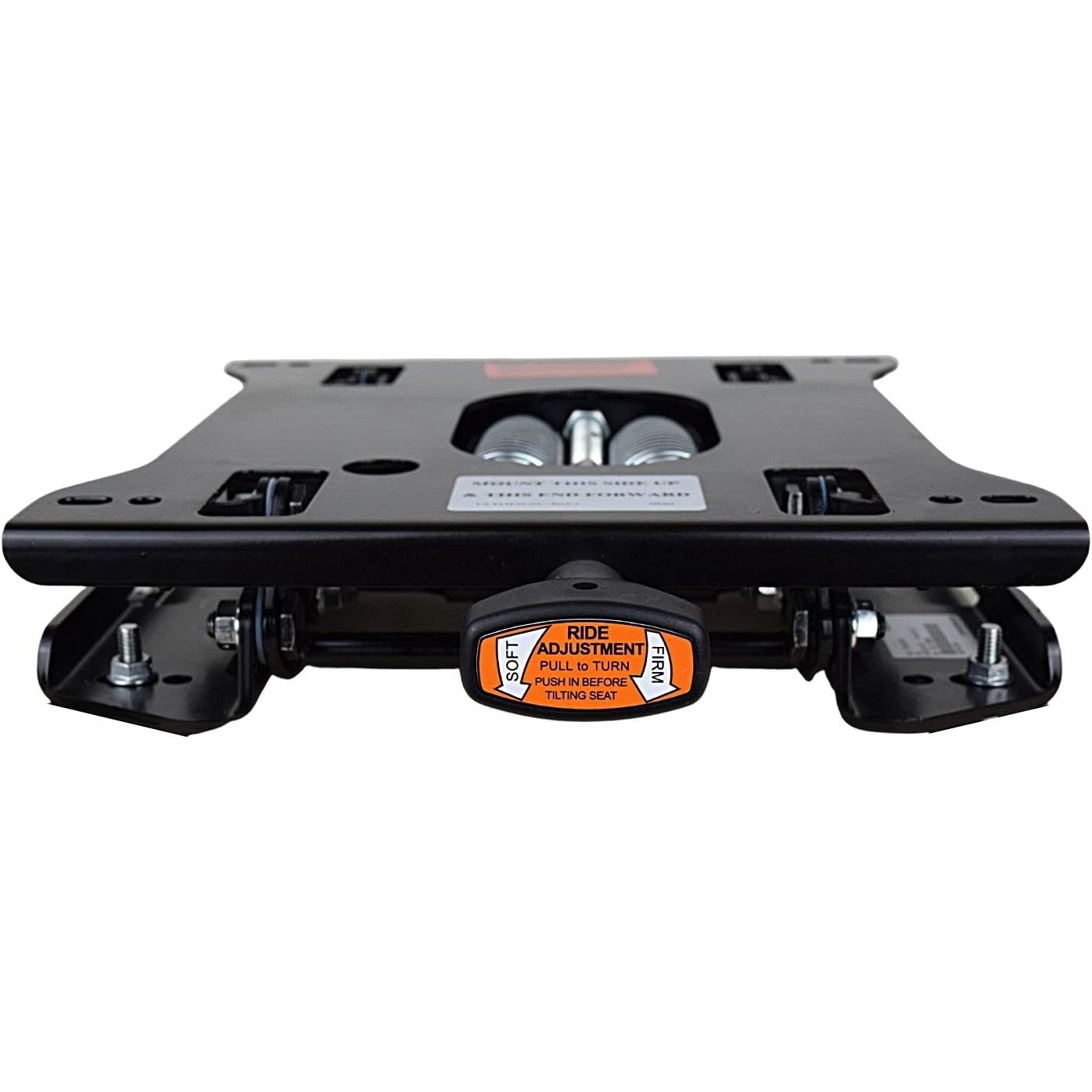

Easy to use and operate weight control

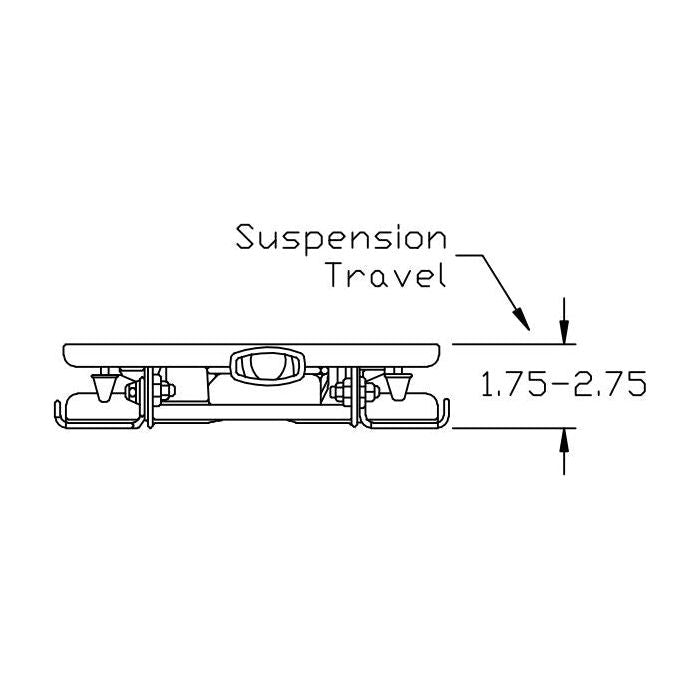

Suspension travel of 1"
275 lb maximum weight capacity

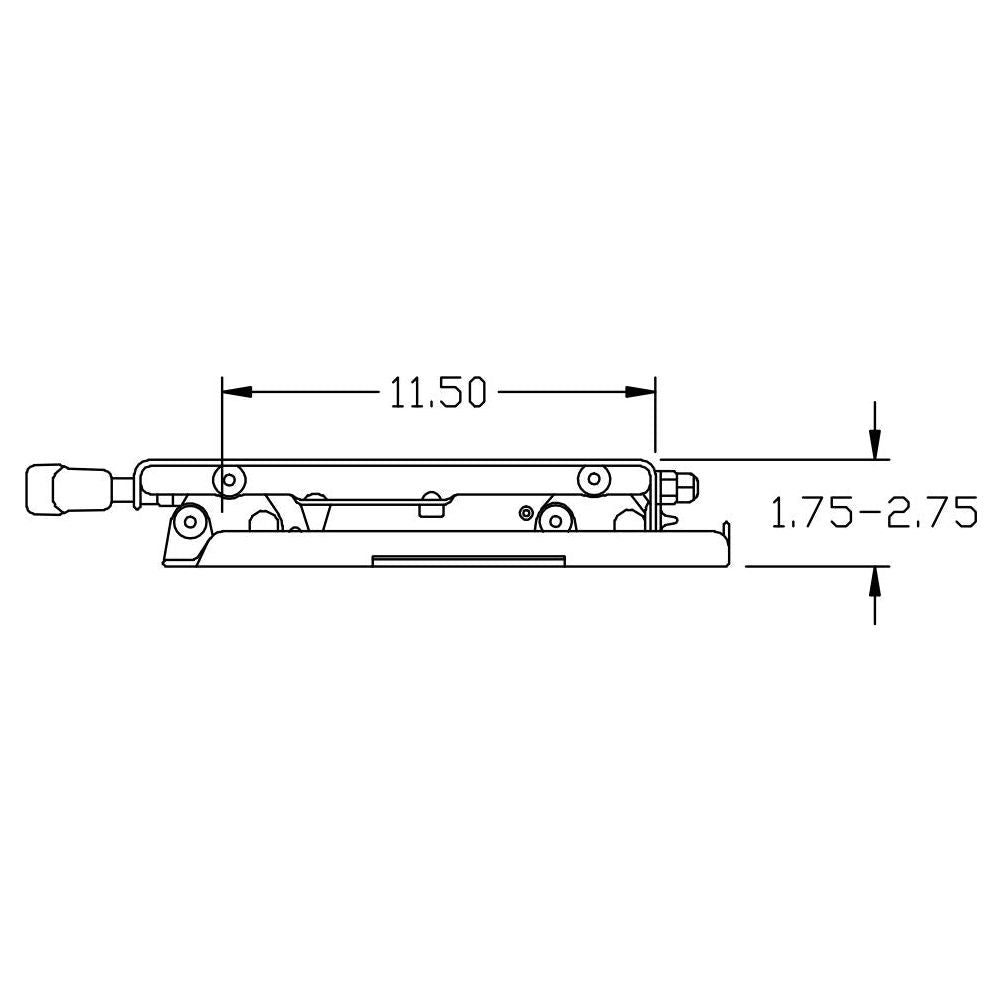

Maximum height adjustment of 2.75"

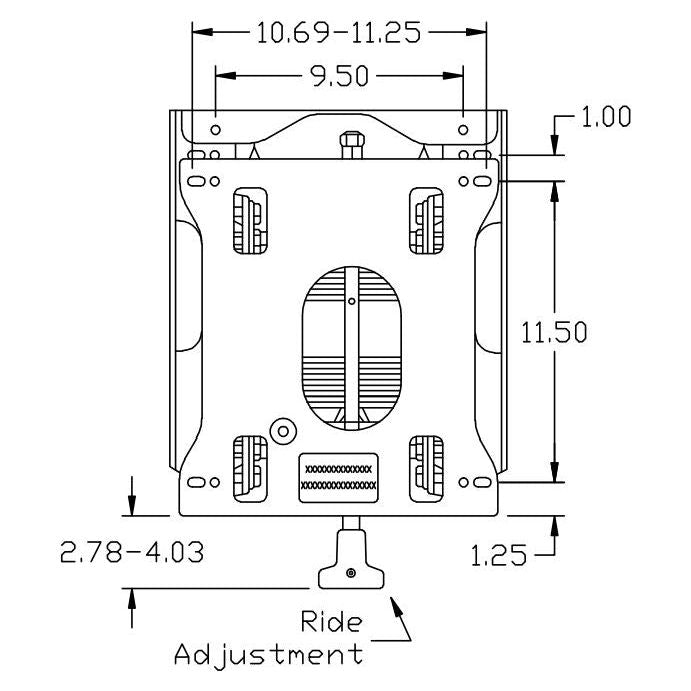

Top mounting pattern of 10.69" - 11.25" side-to-side x 11.5" front-to-back.

Please note some applications may require to drill new holes in existing mounting platform, or fabricate brackets to install this seat suspension.

This Seat Suspension will fit a lot of models of AGRICULTURAL, TURF, CONSTRUCTION, COMMERCIAL, and INDUSTRIAL EQUIPMENT.

Item # MS213

12530, 6081-P6081, 5JIZS78, 23435, sus56 178553PS 25205 Seats
