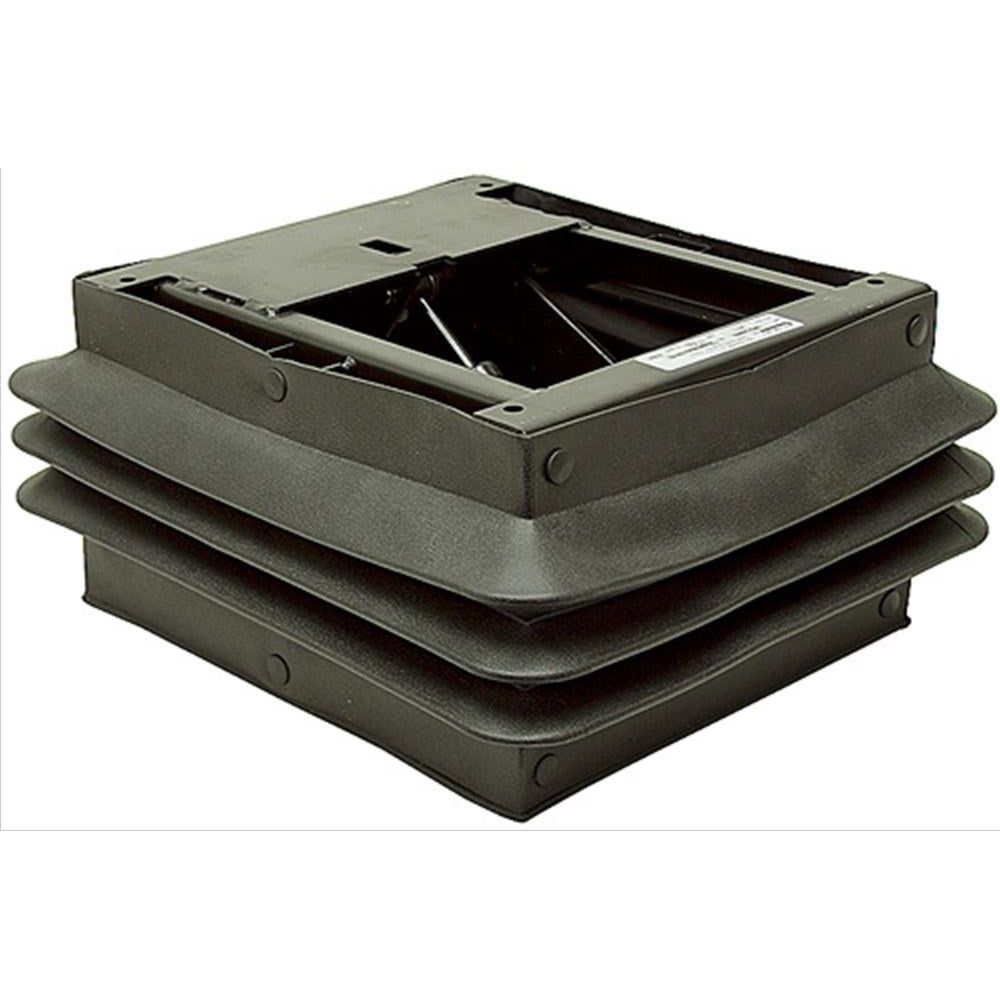

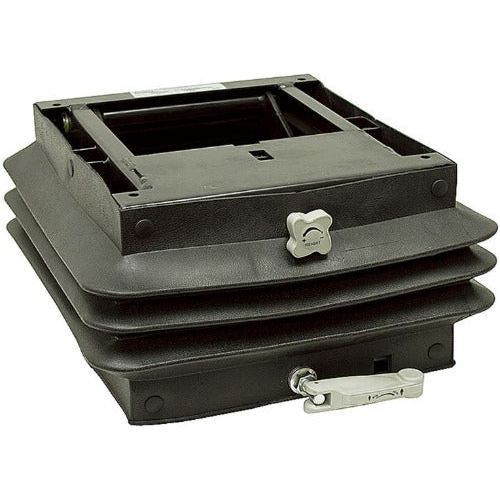

Tractor Seat Mechanical Suspension for Concentric

Mechanical Seat Suspension for JD, AC, IH, FD, NH, MF, IR, Cat, CIH

For Multiple Applications Including But Not Limited To:

Concentric Seats in Tractors, Heavy Construction & Industrial equipment applications.

Easily swap out the old or add this suspension in your equipment. Over time & with a lot of use, it is not uncommon for them to wear out or get damaged.

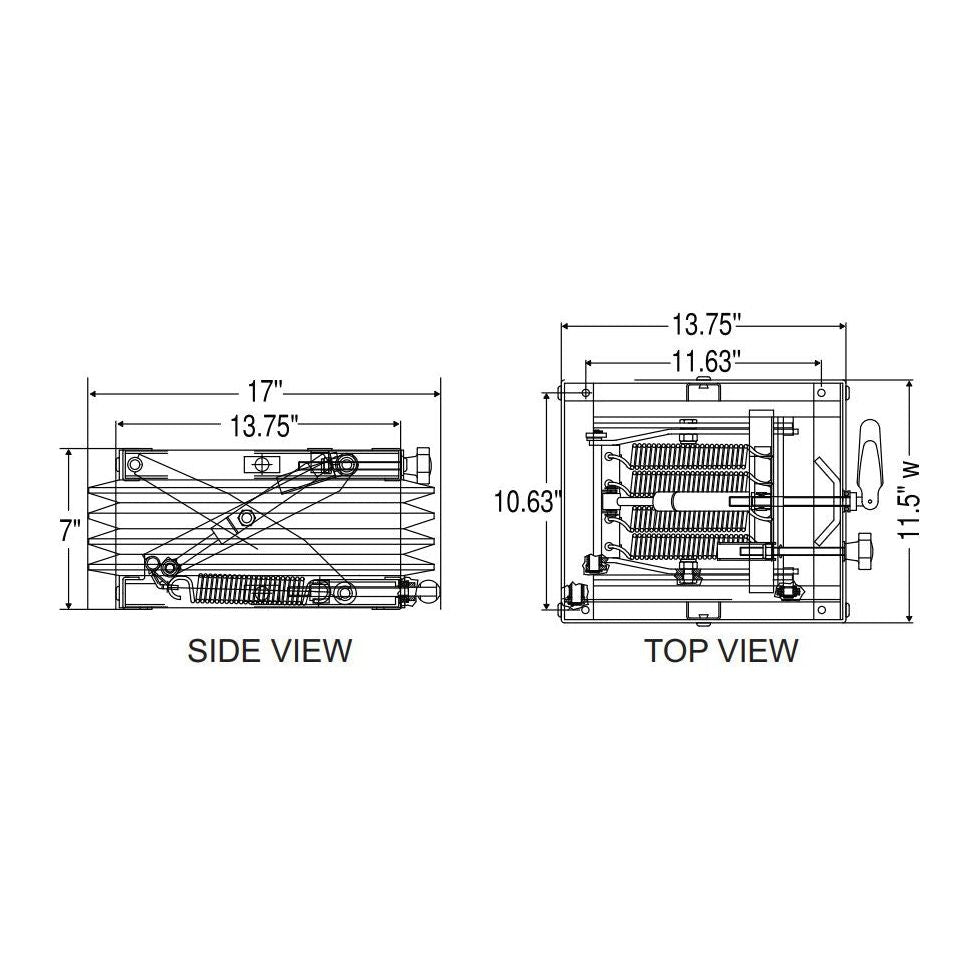

Suspension Stroke 4" (100 mm)
Height Adjustment ( 0"- 2 - 3/8")
Operator Weight 110 - 265 lbs.

Bolt Pattern (Top & Bottom) 10-5/8" width x 11-5/8" Length

Size 17" x 14" x 7"

Please note applications may vary and you may have to drill new holes in existing mounting platform, or require bracket fabrication to install this suspension.

This Seat will fit a lot of models of AGRICULTURAL, TURF, CONSTRUCTION, COMMERCIAL, and INDUSTRIAL EQUIPMENT.

Item # MS198

^{A-MSG95741BNC, SW09001, SLP910166409, MSG95741, MSG95741BNC, A-MSG95741BNC-AI, MSG95741-A, SD021596, ATL09, HEV599255, MSG95741GRC, A-MSG95741GRC, A-MSG95741GRC-AI, SLP78-33854T, SW09002, A-MSG95GS, A-MSG95GS-AI, 20804, 12142, WN-8078, WN8078, SEN10-0122, SEN100122, A-MA2C12 SLP78-74778T A-MA2C12-AI A-SSM200 A-SSM200-AI SSM200-FBM SLP80-87288T 950000BK 744587332290}
