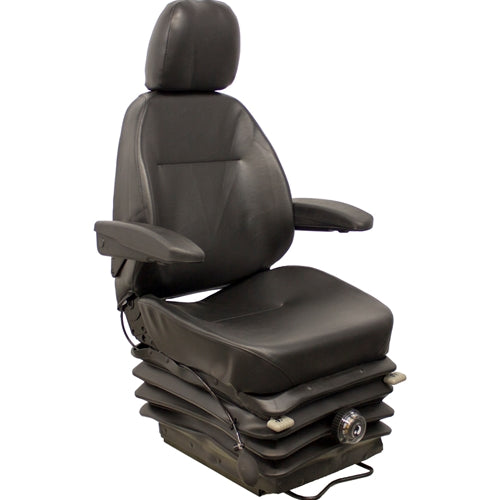

Scrapper / Excavator / Dump Truck / Dozer Seat w/ Suspension

  • $2,198.95
    Unit price per
Shipping calculated at checkout.


Heavy Duty Suspension Seat For Flat Mounting Surface (Some Assembly Required) for JD, AC, IH, FD, NH, MF, IR, Cat, CIH

For Multiple Applications Including But Not Limited To:

Case 325, 325B, 330, 330B, 340, 340B, 9007B, 9010, 9010B, 9020, 9020B, 9030, 9030B, 9040, 9040B, 9050, 9050B, 9060, 9060B, CX75SR, CX80, CX130, CX130B, CX130C, CX135SR, CX145C, CX160, CX160B, CX160C, CX180, CX180B, CX180C, CX210, CX210B, CX210BLR, CX210BLNLC, CX210C, CX210LR, CX210N, CX225SR, CX240, CX240B, CX240BLR, CX240LR, CX250C, CX290, CX290B, CX300C, CX330, CX350, CX350B, CX350C, CX370C, CX460, CX470B, CX470C, CX700, CX700B, CX800, CX800B

Caterpillar 420, 430, 450, 930, 307, 307B, 311, 312, 315, 315L, 320, 320N, 321C LCR, 325C LR, 350, 350L, 375, 375L, E70B, E110B, EL240C, TH220B, TH330B, TH340B, TH350B, TH360B, TH407, TH460B, TH560B, TH580B, 906, 906H, 908, 908H, 918F, 920, 930, 938G II, 960F

A mounting plate or drilling will be necessary for the 12 1/8" lateral mounting on Caterpillar Applications.

Daewoo MEGA 200, MEGA 250, MEGA 300, MEGA 400, MEGA 500

Doosan DA30-5, DA40-5, DL200, DL250

Dresser TD7E, TD7G, TD8E, TD8G, TD8H, TD8M, TD9H, TD10M, TD10R, TD15C, TD15E, TD15M, TD20C, TD20E, TD20M, TD25E, TD25G, 515B, 515C, 520B, 520C, 520E, 530C, 530E, 540, 550, 560B, 560E, 570

Hitachi Zaxis Excavators

Hyundai R110-7, R140-7, R140-9, R160-7, R160-9, R180-7, R180-9, R210-7, R210-9, R220-9, R250-7, R250-9, R290-7, R290-9, R320-7, R320-9, R360-7, R380-9, R450-7, R480-9, R500-7, R520-9, HL730-3, HL730-7, HL740-7, HL757-7, HL760-3, HL760-7, HL770-7, HL780-7

JCB JS220, 530, 530 Turbo, 530-70, 531-70, 531-70 Agri, 532, 532-120, 533-105, 535, 535-125, 535-140, 536, 536-60, 536-60 Agri Plus, 536-70 Agri, 537-135 Turbo, 540, 540-70FS, 540-140, 540-170, 541-70, 5508, 416, 426ZX

John Deere 250C, 250D, 300C, 300D, 350C, 350D, 400C, 400D, 655C, 755C, 70, 80, 110, 120, 160, 370, 490, 750, 790, 792, 75C, 75D, 75G, 80C, 85D, 120 LC, 120C, 120C LC, 120D, 130G, 130G LC, 135C, 135C RTS, 135D, 135G, 135G RTS, 160C, 160C LC, 160D, 160D LC, 160G LC, 160 LC, 180G LC, 190DW, 190GW, 200C, 200C LC, 200D, 200C LC LF, 200D LC, 200 LC, 200 LC LR, 210G, 210G LC, 220DW, 225C LC RTS, 225C RTS, 225C LC, 225D, 225D LC, 225 LC, 230C, 230C LC, 230GW, 230 LC, 230 LC LF, 230 LC R, 230 LC RD, 240D, 240D LC, 245G, 245G LC, 250G LC, 270C LC, 270D, 270D LC, 270 LC, 290D, 290G LC, 300G LC, 330C, 330C LC, 330L, 330 LC, 350D, 350D LC, 350G LC, 370C, 370C LC, 380G LC, 450C, 450C LC, 450D, 450D LC, 450 LC, 470G LC, 490D, 490E, 495D, 550 LC, 590D, 595D, 600C, 600C LC, 600 LC, 650D, 650D LC, 670G LC, 690C, 690CR, 690D, 690D R, 690E LC, 70D, 75C, 75C ZTS, 75D, 790D, 790E LC, 792D, 792D LC, 800C, 800C LC, 800D LC, 800G LC, 850D LC, 870G LC, 892D LC, 892E LC, 992D LC, 992E LC, 2054, 2154D, 2454D, 2554, 2954D, 3154G, 3156G, 3554, 3754D, 3754G, 3754GLC, 3756G, 3756GLC, 670B, 670C, 670D, 672B, 672C, 770B, 770C, 770D, 772B, 344J, 444E, 444G, 544E, 544G, 544H, 624E, 624G, 644E, 644G, 644H, 744E

Kobelco 140SRLC, SK70SR, SK70E-2, SK75SR, SK80CS, SK85CS, SK115SR, SK120 IV, SK135SR, SK140SR, SK140SRLC, SK140SR-3, SK150 IV, SK160 IV, SK160-6, SK170LC, SK200 IV, SK200-6, SK200-8, SK210LC, SK210-6, SK210-8, SK220 IV, SK225SR, SK230SR, SK235SR, SK250 IV, SK250-6, SK260-8, SK290LC, SK300 IV, SK350LC, SK350-8, SK400 IV, SK480LC (seat must not be connected to pods)

Komatsu D155A-3, D275A-2, D275AX-5, D31EX-21, D31EX-22, D31PX-21, D31PX-22, D355A-3, D375A-1, D37EX-21, D37EX-22, D37PX-21, D37PX-22, D39EX-21, D39EX-22, D39PX-22, D41P-6, D41P-6K, D475A-1, D475A-2, D475A-3, D475A-5, D51PX-22, D575A-2, D61EX-15, D61PX-15, D65EX-15, D65EX-16, D65PX-15, D65PX-16, D65WX-15, D85A-21, D85E-21, D85EX-15, D85PX-15, D85PX-21, D85P-21, D85PX, PW100-3, PW128UU-1, PW130-6K, PC100-6, PC120-3, PC120-6, PC120-8*, PC1250-7, PC128US-2, PC128UU-2, PC130-6, PC130-6K, PC130-7, PC130-7K, PC130-8*, PC150LC-6K, PC160-6K, PC160LC-7K, PC180LC-5K, PC200-3, PC200-8*, PC2007-7, PC200LC-3, PC200LC-7, PC200LC-81, PC210-6K, PC210-7K, PC210-8*, PC210-8K, PC210LC-5K, PC210LC-6K, PC210LC-7K, PC210LC-8K, PC220-2, PC220-3, PC220-6, PC220-7, PC220-8*, PC220LC-2, PC220LC-3, PC220LC-6, PC240-8*, PC240NLC-5K, PC250-6, PC250LC-6, PC270-8*, PC270LC-7L, PC290-8*, PC290NLL-6K, PC300-3, PC300-6, PC300-8*, PC300LC-3, PC300LC-8, PC340-6K, PC340LC-6K, PC350-8*, PC350LC-8, PC360-7, PC400-8*, PC400-6Z, PC400LC-3, PC400LC-6, PC400LC-8, PC40-7, PC450-7K, PC450-8*, PC450LC-6K, PC450LC-6K-KE, PC450LC-8, PC45-1, PC88MR-6, PC88MR-8, PC95-1, PC95R-2, PW130ES-65, PW150ES-6K, PW170-5K, PW170ES-6K, WA100-3A, WA1200, WA120-E, WA150-3*, WA150-5*, WA180-3*, WA180PT-2, WA200-3, WA200-5, WA200-6*, WA200PT-5, WA200PZ-6, WA240, WA250-3*, WA250-3MC, WA250-3-X, WA250-5*, WA250-6*, WA250L-5, WA250PT-3, WA270, WA270PT, WA320-3*, WA320-5*, WA320-6*, WA320L-5, WA320PZ-6, WA380-3*, WA380-5*, WA380-6*, WA380-DZ-3, WA400-3A-S, WA400-5*, WA420-3*, WA420-3MC, WA420-DZ-3, WA430-5, WA450, WA450-3*, WA450-5*, WA450-6*, WA450-3L, WA470-3, WA470-5*, WA480-5*, WA500-3*, WA500-6, WA600, WA700-3, WA800-2, WA800-3, WA80-3, WA85, WA90, WA900-1, WA900-3, WA95, (Requires Adapter Plate)

New Holland D150, DC150.B, DC180.B, E70 MIDI, E80 MIDI, E130, E135B, E160, E175B, E215, E215B, E235BSR, E235BSRLC, E235BSRNLC, EH70, EH80, EH130, EH160, EH215, FW90, FW110, FW130, FW170, FW190, FW270, LW90, LW110, LW110.B, LW130, LW130.B, LW130TC, LW170, LW170.B, LW170TC, LW190, LW190.B, LW230, LW230.B, LW270, LW270.B, W110, W130

Takeuchi TB175, TB175CR, TB1140

Terex S17E, TS14F, TS14G

Volvo A25C, A25D, A25E, A25F, A25G, A30C, A30D, A30E, A30F, A35C, A35D, A35E, A35F, A40C, A40D, A40E, A40F, A40G, EC140B,  L60E, L70B, L70C, L70D, L70E, L70F, L70G, L90B, L90C, L90D, L90E, L110E, L110F, L120C, L120E, L120F, L120G, L1150C, L150E, L150F, L150G, L220D (Requires Adapter Plate or Drilling)

Durable fabric or vinyl covering
Mechanical suspension with 2 springs
Adjustable headrest for extended comfort
Adjustable backrest adds comfort and versatility
5-position lumbar support to help prevent lower back pain
Adjustable fold-up armrests (standard on Vinyl)
Document pouch to store owner's manual and other valuables
4" vertical suspension stroke
2.4" seat height/tilt adjustment on front of suspension
110 - 265 lb weight adjustment
Meets ISO 7096 specifications for vibration isolation
Slide rails provide 7.9" fore/aft adjustment in increments of 0.39"
Durable suspension cover to keep components free of dirt and dust

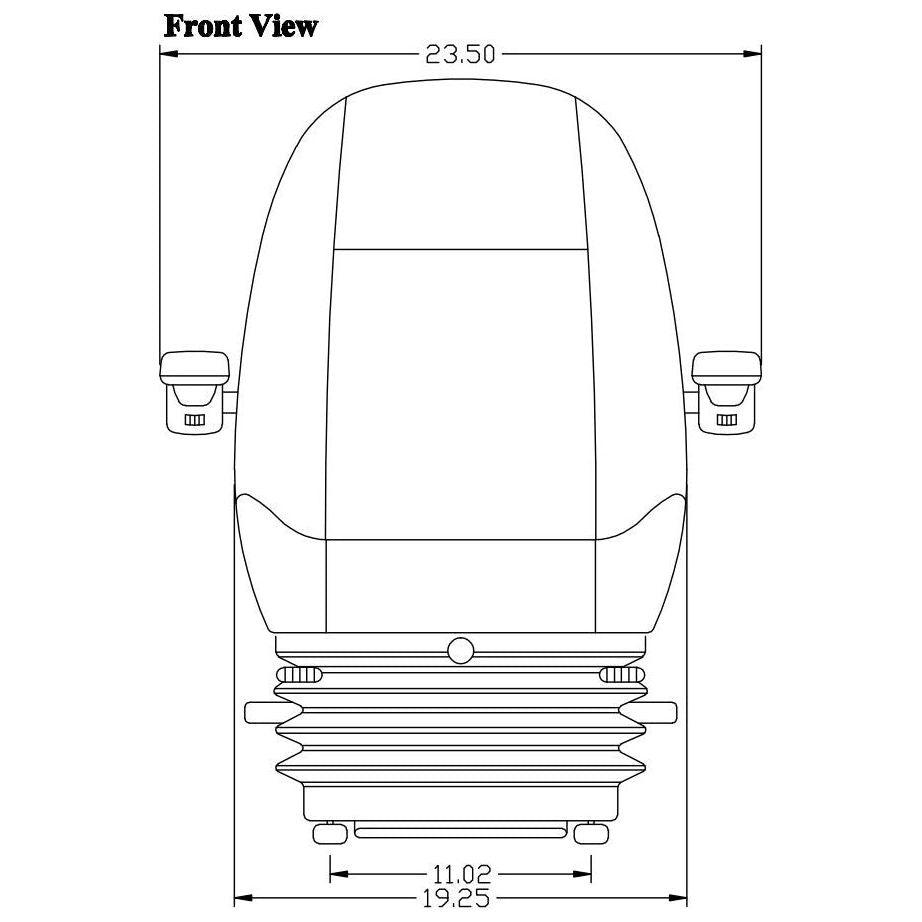

The seat measures 19.5" wide and 32.5" high.

Seat meets EM1, EM3, EM4, EM5, EM6 and EM8 specifications.

Bolt Pattern (W x L - 11.02" x 11.97"-13")

For Armrest Use Item # AR165

Please note some models you may have to drill new holes in existing mounting platform, or require bracket fabrication to install this seat.

This Seat will fit a lot of models of AGRICULTURAL, TURF, CONSTRUCTION, COMMERCIAL, and INDUSTRIAL EQUIPMENT.

Item # MS271

KAB 8900195165, 87344650, 8770600, 87706002, 119-8263, 142-1342, AT252980, AT185022, AT218531, 4230833, 445406, 4454406, 4456380, 4458290R, 4486189, 4486189R, 464401R, 4646401R, 4658114R, AP33296, AT195286, 4646401R, 46460401R, 4458290R, 4658114R, AP33296, AT193964, 4454406, FYA00009135, FYA00009134, 4458290R, FYA00009134, 4646401R, 4458290R, AT159385, AT160119, AT174642, AT174643, LW10472088, YN25MU0002F1, YT25M00025F1, YN25M00059F1, 12Y-57-11300, 12Y-57-11500, 14X-57-21100, 14X-57-21200, 20Y-57-28200, 20Y-57-41102, 20Y-57-41103, 20Y-57-41104, 20Y-57-41302, 418-960-3110, 418-960-31111, 421-57-31111, 421-57-31220, 421-57-31411, 421-57-31412, 421-57-41110
