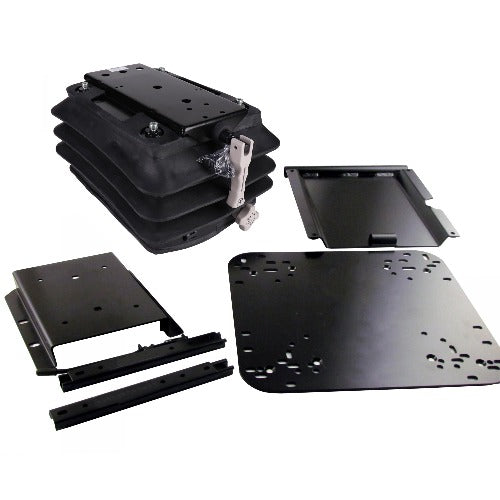

Narrow Base Tractor Seat Mechanical Suspension Assembly

  • $839.69
    Unit price per
Shipping calculated at checkout.


Mechanical Seat Suspension Assembly for IH

For Multiple Applications Including But Not Limited To:

International 1026, 1066, 1206, 1256, 1456, 1466, 1468, 1566, 21026, 21206, 21256, 21456, 2656, 2706, 2756, 2806, 2826, 2856, 706, 756, 766, 806, 826, 856, 966

Suspension Stroke 4" / 100mm

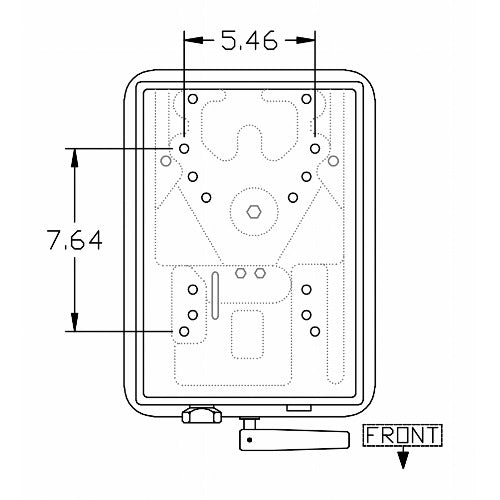

Slide Track Fore & Aft Travel Is 6" / 150mm, C to C rail to rail is 6.75"

Weight Adjustment 110 - 330 lbs. / 50 - 150kg

Black long lever is for the slide track

Gray handle lever in the middle is for adjusting the weight

Gray star shaped knob is to adjust suspension up or down

Please note some applications may require to drill new holes in existing mounting platform, or fabricate brackets to install this seat suspension.

This Seat Suspension will fit a lot of models of AGRICULTURAL, TURF, CONSTRUCTION, COMMERCIAL, and INDUSTRIAL EQUIPMENT.

Item # MS138

8079 TS1080SS 72-1030 721030 A-SSM100 SSM100-RAP SSM100-IRT A-SSM100-AI TCA19757, TCA51087
