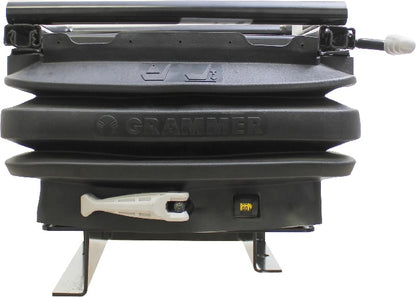

Mechanical Suspension Conversion Kit for International

$669.95
Unit price per

Shipping calculated at checkout.

Suspension Conversion Kit

For Multiple Applications Including But Not Limited To:

International 706, 756, 766, 806, 826, 856, 966, 1026, 1066, 1206, 1256, 1456, 1566, 1568, 2706, 2756, 2806, 2826, 2856, 21026, 21206, 21256, 21456

Use with Seat Item # SC195

Easily swap out or add this Seat suspension on your seat with this Grammer suspension Kit. Mounts under seat, giving operator a more comfortable and healthier ride.

Frame width of 11.75" wide x 15.25" deep
Mechanical suspension with travel of 4.00"
Suspension stroke up to 7.00"
Flip-handle weight adjustment from 110 to 285 lbs
Front-mounted weight indicator
To adjust tension, simply rotate the front mounted flip-handle clockwise to increase tension or counterclockwise to decrease tension
Three-position height adjustment of 3.00", simply lift the seat until you hear it click into place.
Allows seat to tip front to keep dry

Item # MS294
