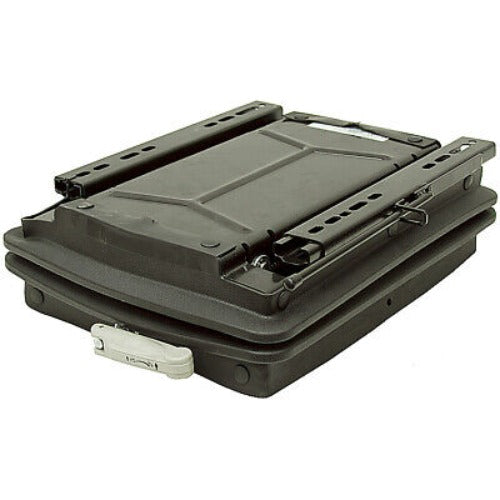

Low Profile Tractor Seat Mechanical Suspension

  • $298.95
    Unit price per
Shipping calculated at checkout.


Mechanical Seat Suspension for JD, AC, IH, FD, NH, MF, IR, Cat, CIH

For Multiple Applications Including But Not Limited To:

Tractor & Implements This seat suspension system has weight adjustments and seat slides for custom comfort. 2-spring suspension with hydraulic damper. Fully skirted, powder coated steel construction.

Suspension Travel 1-1/2"
Weight Adjustment 110 to 265 lbs.
Top Bolt Pattern (Width X Length) 10-1/2" x Slotted Slides
Bottom Bolt Pattern Width 10-1/4"
Bottom Bolt Pattern Length 5-1/4", 6-1/2", 8-5/8", 9-5/8", 10-3/4", 12", 12-3/4" 3" Front to Back Movement

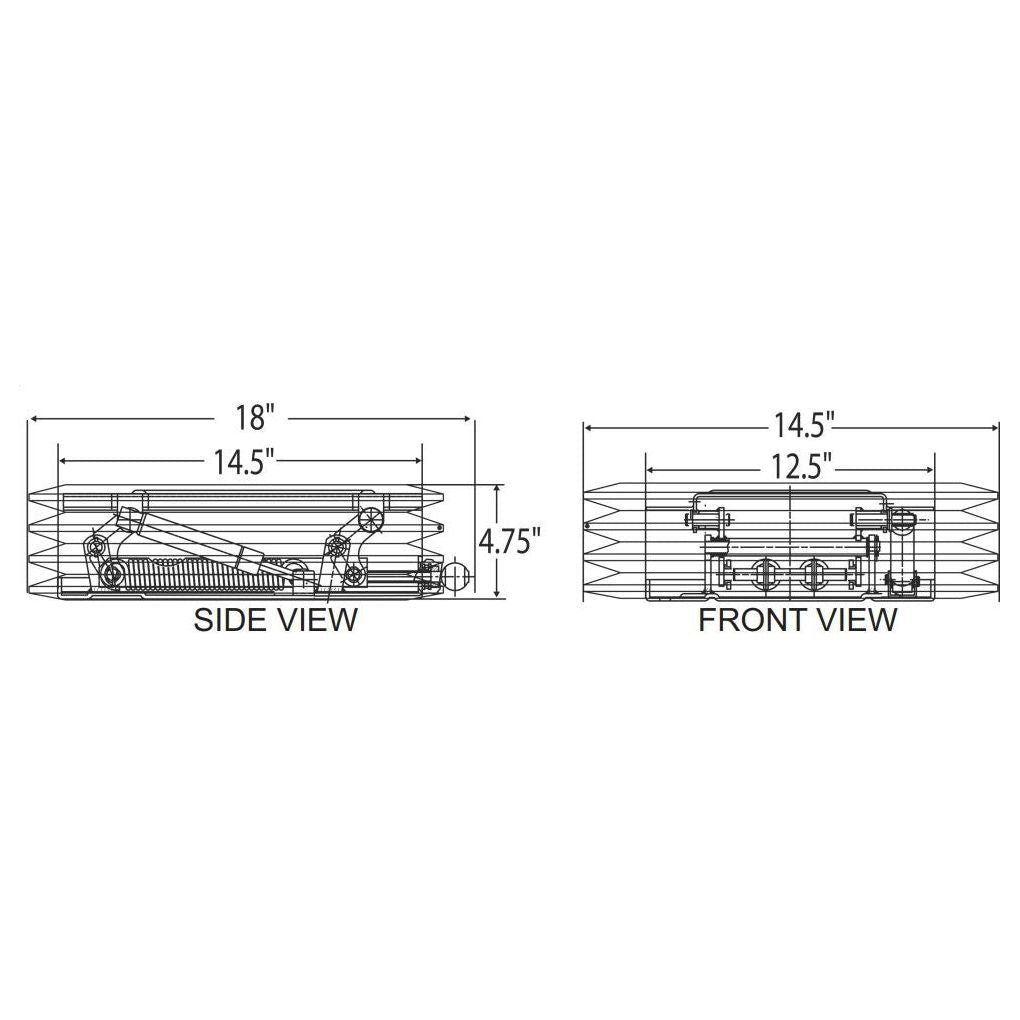

Size 18" x 14-1/2" x 4-3/4"
Weight 35 lbs.

Please note some models may vary and you may have to drill new holes in existing mounting platform to install this seat suspension.

Your Seat may have Metric 8 x 16 Mounting Bolts.
This Seat Uses Standard 5/16" x 3/4" Bolts.

This Seat Suspension will fit a lot of models of AGRICULTURAL, TURF, CONSTRUCTION, COMMERCIAL, and INDUSTRIAL EQUIPMENT.

Item # MS195
