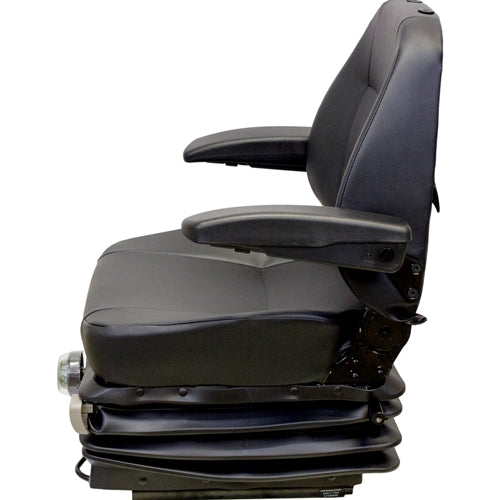

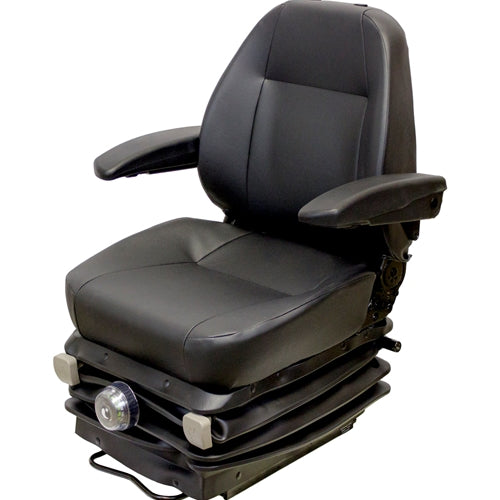

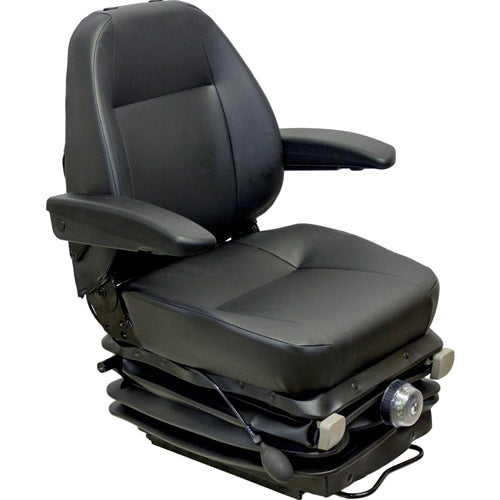

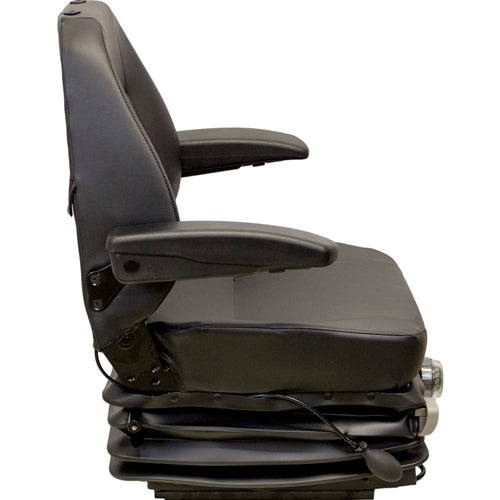

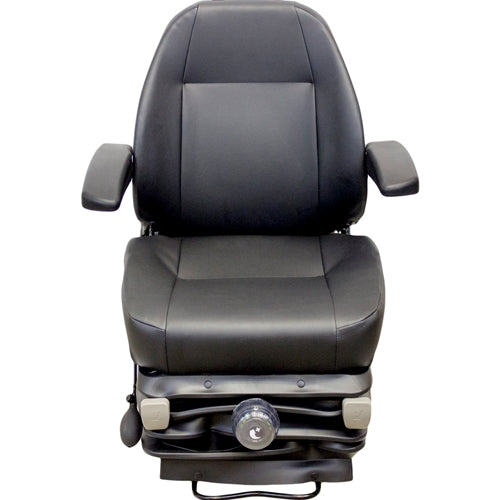

Heavy Duty Dozer / Compactor / Loader Seat w/ Suspension

  • $2,449.95
    Unit price per
Shipping calculated at checkout.


Heavy Duty Suspension Seat For Flat Mounting Surface (Some Assembly Required) for JD, AC, IH, FD, NH, MF, IR, Cat, CIH

For Multiple Applications Including But Not Limited To:

Caterpillar 815F, 815F II, 816F, 814F, 814FII, 914G, 924F, 924G, 924GZ, 928G, 928GZ, 938F, 938G, 938G II, 950F II, 950G, 960F, 960G, 962G, 966F II, 966G, 966G II, 970F, 972G, 980F II, IT14G, IT18F, IT24F, IT28G, IT38F, IT38G, IT62G

Durable vinyl covering
Heavy-duty mechanical suspension with 4 springs and 4" vertical suspension stroke
Adjustable backrest adds comfort and versatility
Lumbar support to help prevent lower back pain
Adjustable fold-up armrests
Document pouch to store owner's manual and other valuables
2.4" seat height/tilt adjustment
176 - 330 lb weight adjustment
Meets ISO 7096 specifications for vibration isolation
Slide rails provide 7.9" fore/aft adjustment in increments of 0.39"
Includes a durable suspension cover to keep components free of dirt and dust.

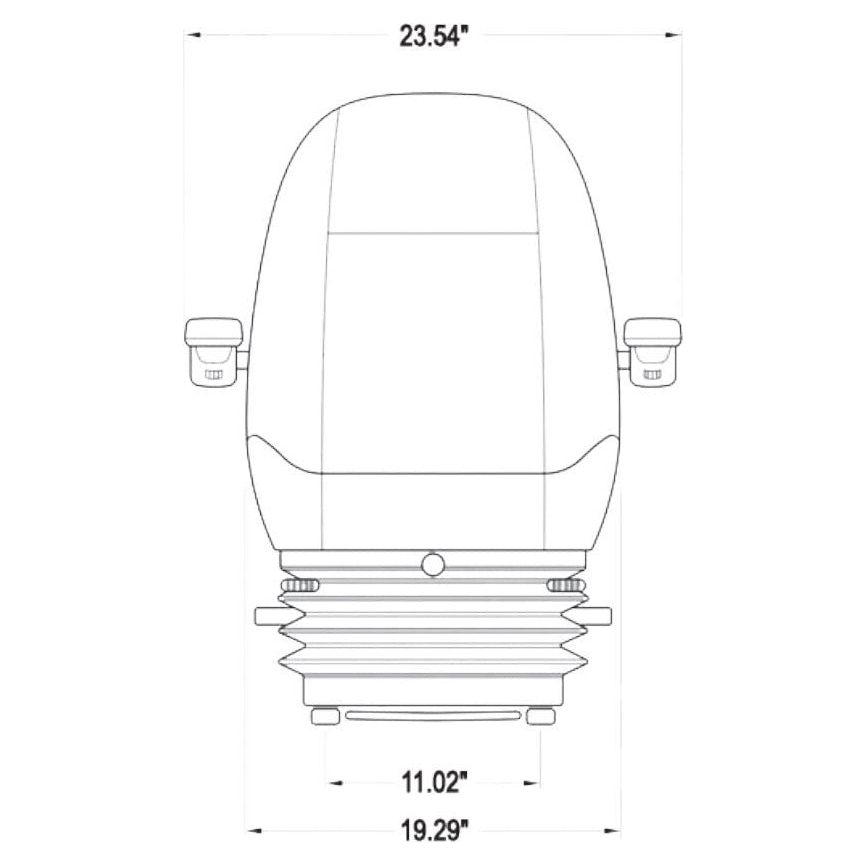

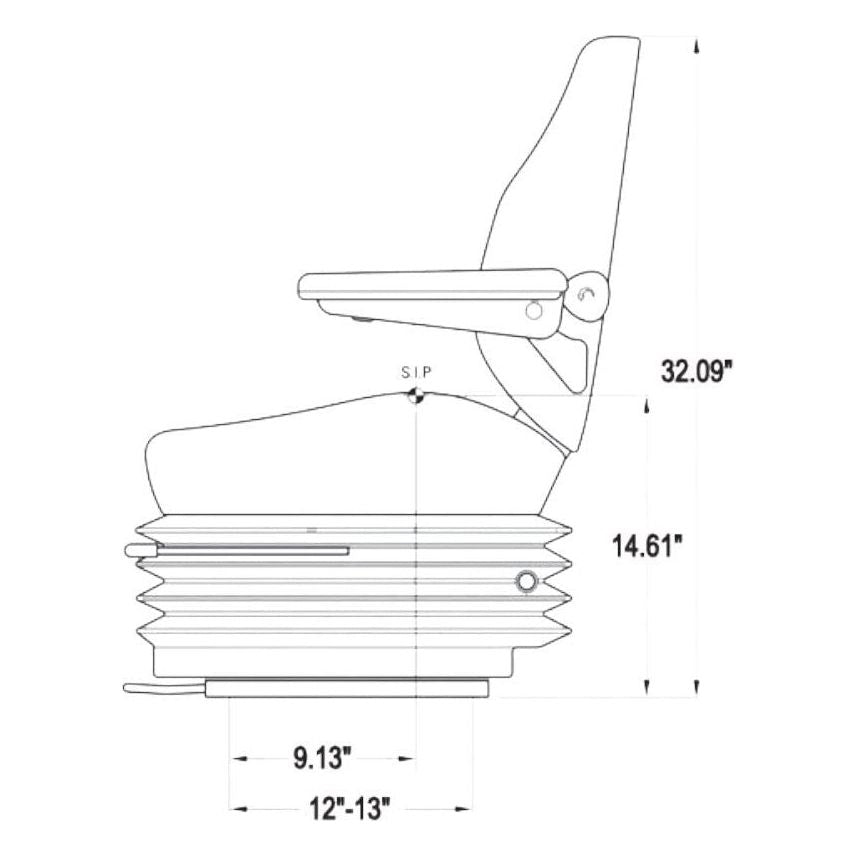

The seat measures 19.3" wide and 32.1" high.
Seat belt conforms to ISO 6683, SAE J386 and ISO 3776 (anchorage strength of 3372 lbs).

Seat meets EM1, EM3, EM4, EM5, EM6 and EM8 specifications.

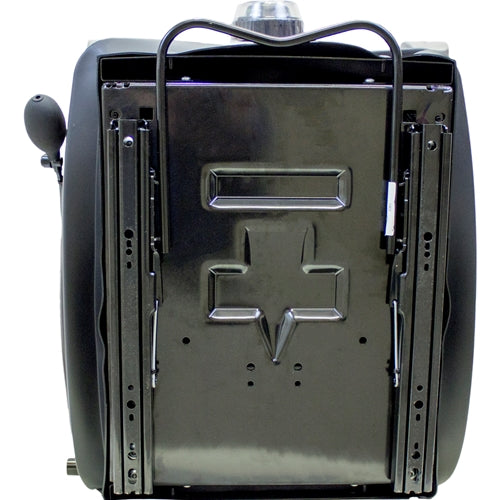

Bolt Pattern (W x L - 11.02" x 12"-13")

Some Applications may require drilling, or Adapter Plate to mount seat.

For Armrest Use Item # AR165

Please note some models you may have to drill new holes in existing mounting platform, or require bracket fabrication to install this seat.

This Seat will fit a lot of models of AGRICULTURAL, TURF, CONSTRUCTION, COMMERCIAL, and INDUSTRIAL EQUIPMENT.

Item # MS272

108-2192 kab 554 525 502 503 8445 8446 8415 8111 8144 6862
