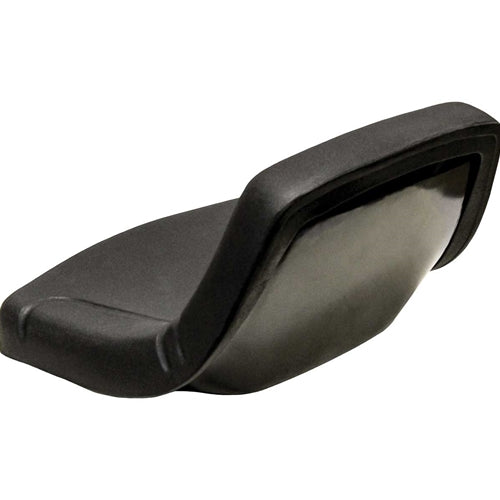

Gator Loader Compact Lawn Mower Garden Tractor Seat

$109.95
Unit price per

Shipping calculated at checkout.

Low Back Seat for JD, AC, IH, FD, NH, MF, Cat, IR, CIH

For Multiple Applications Including But Not Limited To:

John Deere Z335M, Z345M, Z345R, Z355R, Z375R, Z445

Tractors & Implements This tractor seat offers high-density, molded foam in a compact design, allowing for maximum versatility in application. The tractor pan seat is made with a steel frame for lasting strength.

Durable Heavy-duty PVC Vinyl covering
Steel pan with black powder coat finish for long-lasting durability
Seamless molded and contoured cushions to ensure operator comfort
Low-back seat Accepts Slides
Seat dimensions: 17.7" x 10.6" x 12.2" (W x H x D)
Strong wear resistance
Universal threaded mounting patterns

Tractor pan seat works with lawn mowers, garden tractors, and utility seating

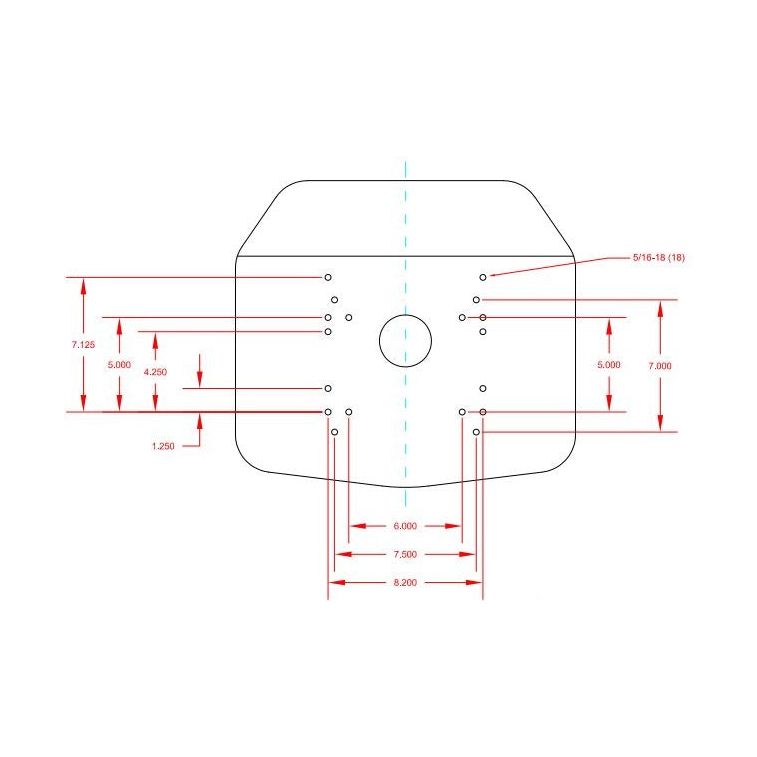

Bolt Patterns (Width x Depth)

6" x 5", 7-1/2" x 7", 8-1/4" x 5", 8-1/8" x 1-1/4", 8-1/8" x 3", 8-1/8" x 3-3/4", 8-1/8" x 4.25", 8-1/8" x 5", 8-1/8" x 5.825", 8-1/8" x 7"

Seat has provision for operator presence switch.

Please note some models may vary and you may have to drill new holes in existing mounting platform to install this seat.

Your Seat may have Metric 8 x 16 Mounting Bolts.
This Seat Uses Standard 5/16" x 3/4" Bolts.

This Seat will fit a lot of models of AGRICULTURAL, TURF, CONSTRUCTION, COMMERCIAL, and INDUSTRIAL EQUIPMENT.

Item # WS279

^{B1SE110 CS3509 LGS97 0278001 716923 72-1015 A-LMS2002YL 180597 A-LMS2002, A-LMS2002-A, B1SE110, CS3509, CS3509-A, CVB1SE110, CVB1SE110-A, LGS97, LMS2002, LMS2002-A, SE110, SE110-A LMS2002-IRT CS3509-RAP 401042 213278 B1SE110Y 24866 A-LMS2002YL-AI CVB1SE110Y CVB1SE110Y-A LMS2002Y LMS2002Y-A SE110Y SE110Y-A 1238151 24866 72-1016 110000BK 110000YE 15630, 9250 8544 103 SEA-LG6BEX}
