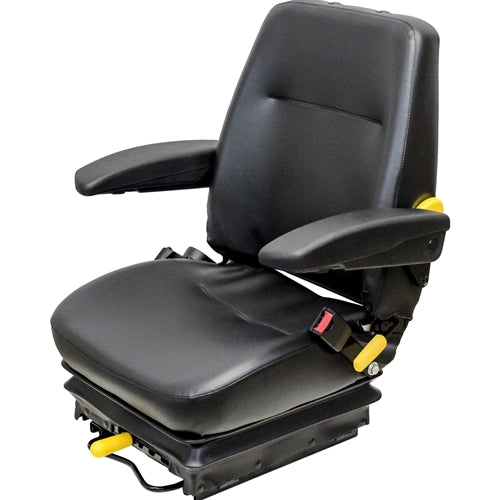

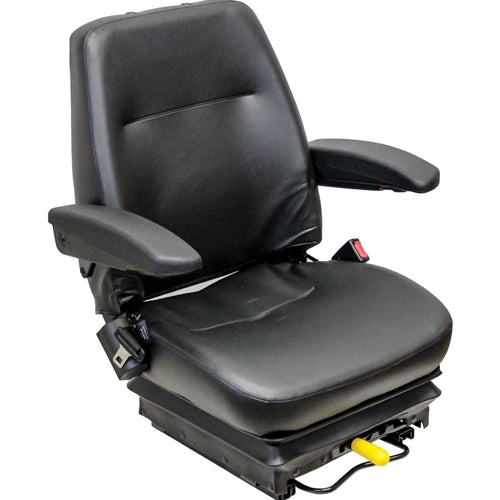

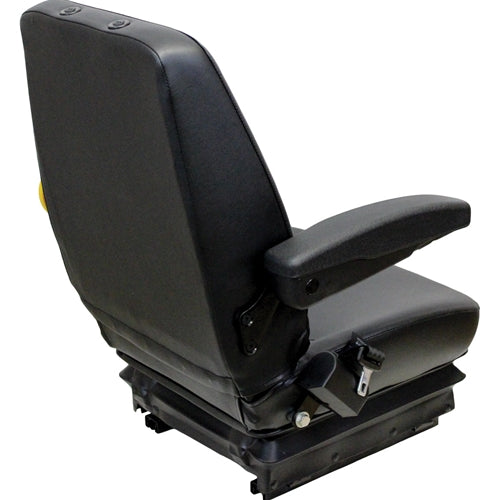

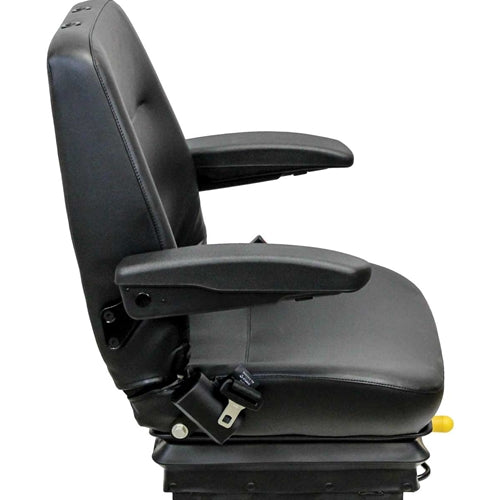

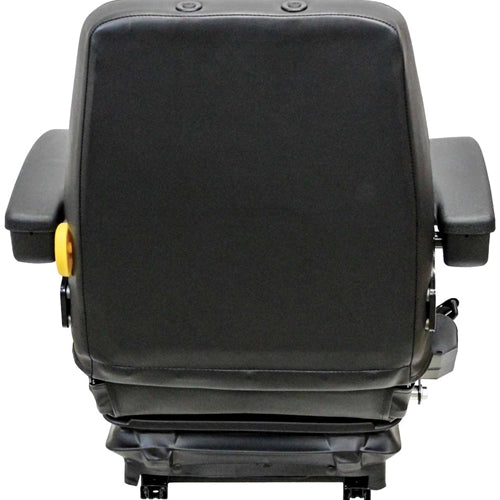

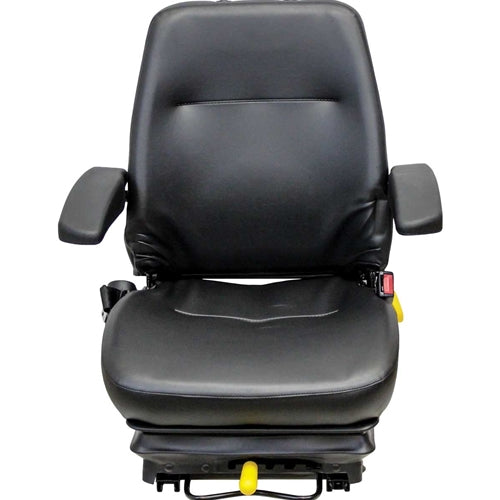

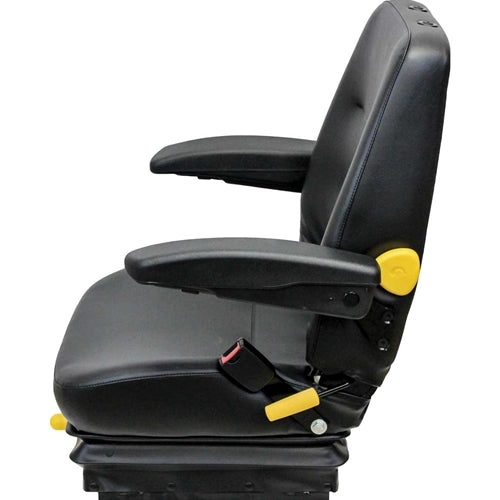

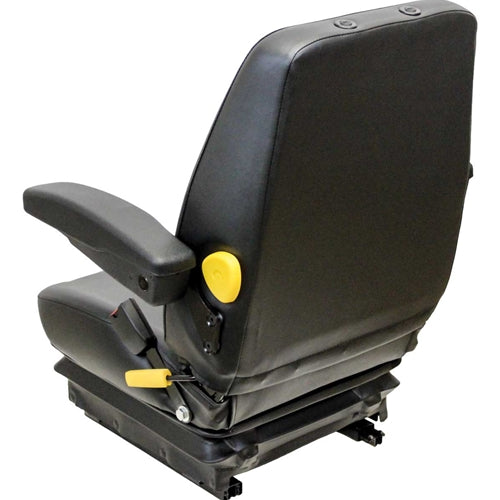

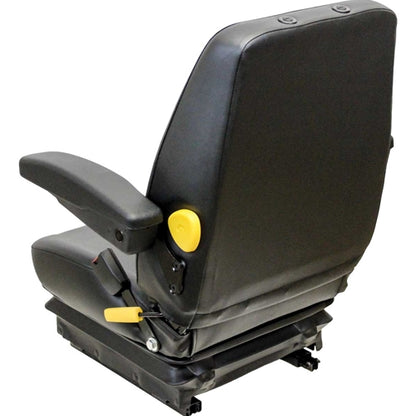

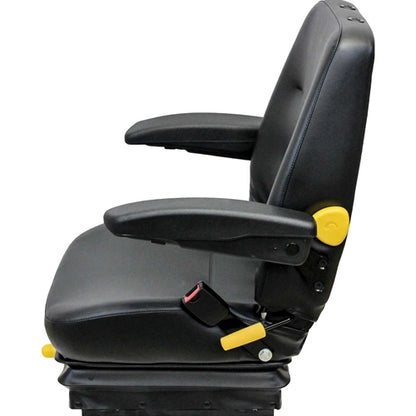

Excavator / Compactor / Loader Seat w/ Mechanical Suspension

Suspension Seat For Flat Mounting Surface for JD, AC, IH, FD, NH, MF, IR, Cat, CIH

For Multiple Applications Including But Not Limited To:

Case 580G, 450C, 650, 850, 850B, 850C, 850D, 1150C, 1150E, 1450B, 1550, 1155D (Must Remove Armrests) 1155E, W14, W14FL, W18, W18B, W20, W20B, W20C, W24B, W24C, W36

Caterpillar 225B, 235, 235B, 235C, 308C, 313C, 314C, 321C, CB54, CB64, CB-434D, CB-564D, CB-634D, CD54, CD54B, CS-533, CS-533C, CS-533D, CS-533E, CS-563, CS-563C, CS-563D, CS-563E, CS-573E

Dresser TD7E, TD7G, TD7G WT, TD8G, TD15C, 530

Ingersoll Rand DD130

International Harvester 4366, 4386, 4586

JCB 930-2

John Deere 646, 646B, 444, 544B, 644B (Must Remove Armrests)

New Holland 555, 555A, 555B, 655, 655A

Steiger PT225, ST220, ST225, PT270, PTA251, PTA270, PTA280, ST250, ST251, ST270, ST280, ST310, ST320, ST325, ST350, PTA297, PTA310, PTA325

Durable Black Vinyl covering
Mechanical suspension
Contoured foam cushions to ensure operator comfort
Full-sized T1 upper backrest
20° backrest angle adjustment
Lumbar support to help prevent lower back pain
Adjustable fold-up armrests
2" retractable seat belt for added safety
Document pouch to store owner's manual and other valuables

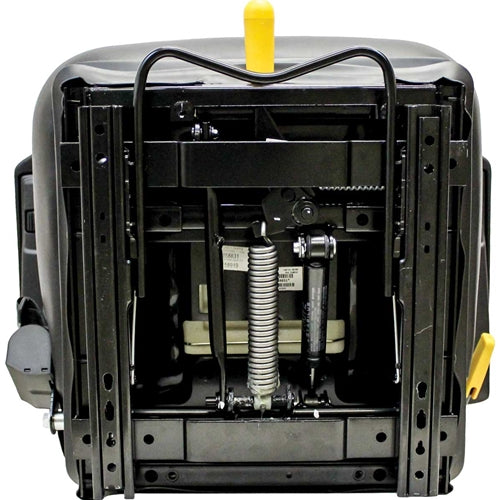

2" vertical suspension stroke
7" fore/aft slide rail adjustment

Vibration performance to ISO 7096

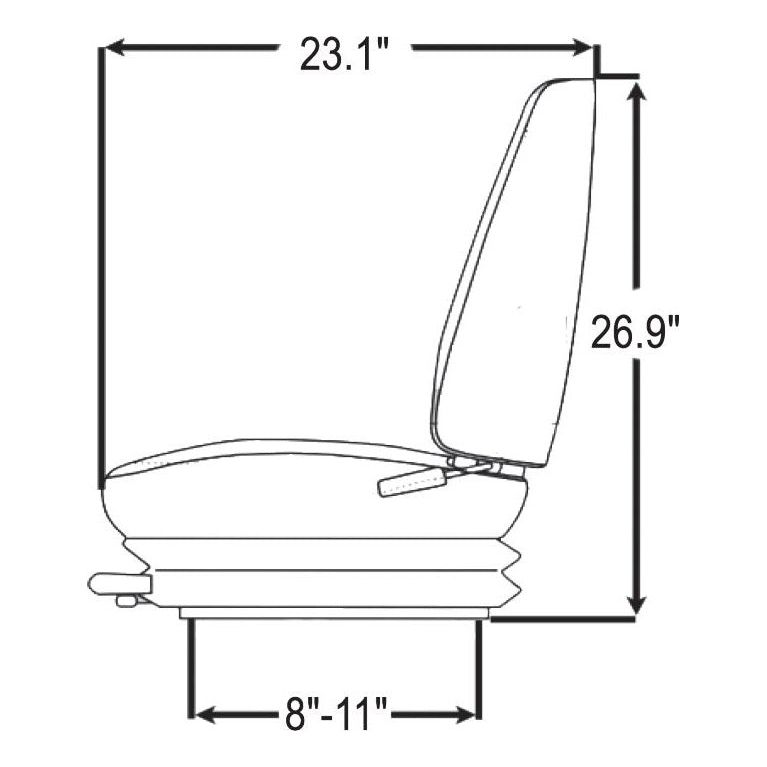

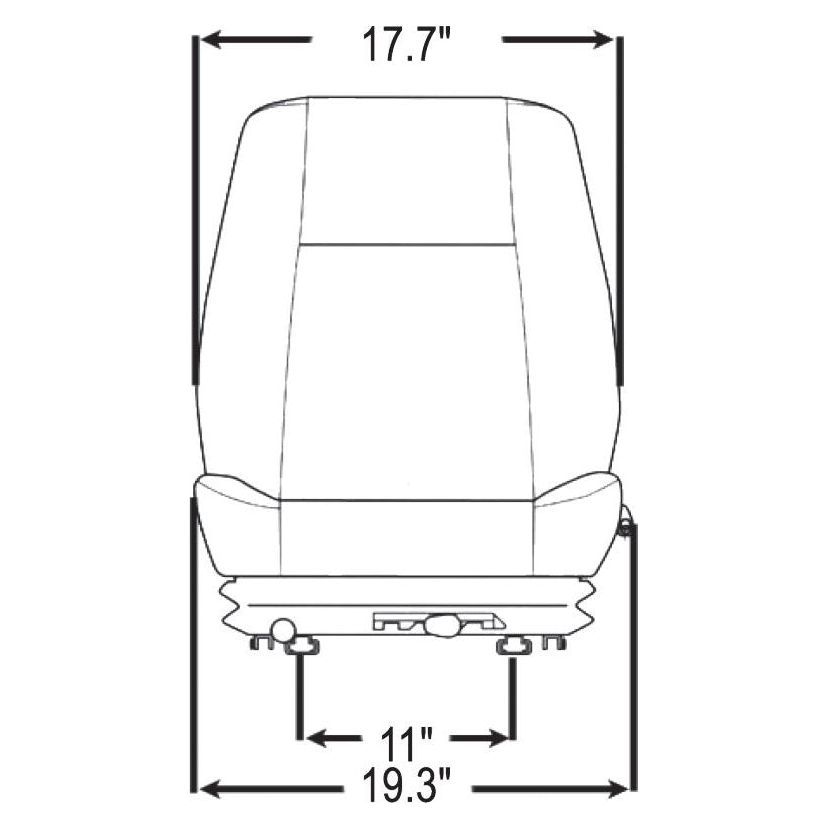

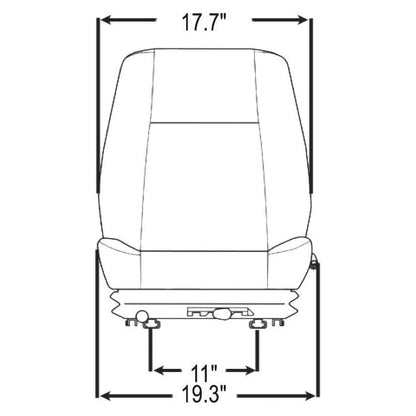

Bolt Pattern (W x L - 11" x 8" or 11" x 11")

Please note applications may vary and you may have to drill new holes in existing mounting platform, or require bracket fabrication to install this seat.

This Seat will fit a lot of models of AGRICULTURAL, TURF, CONSTRUCTION, COMMERCIAL, and INDUSTRIAL EQUIPMENT.

Item # MS256
