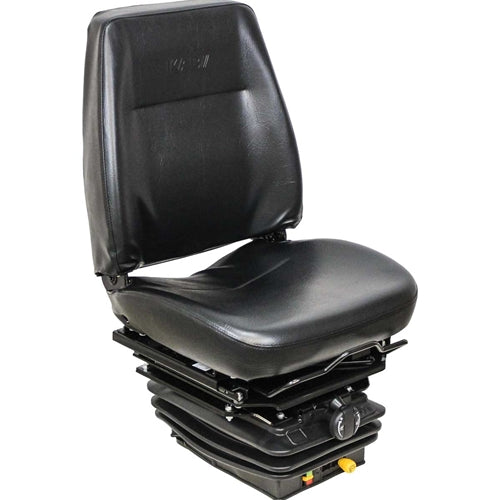

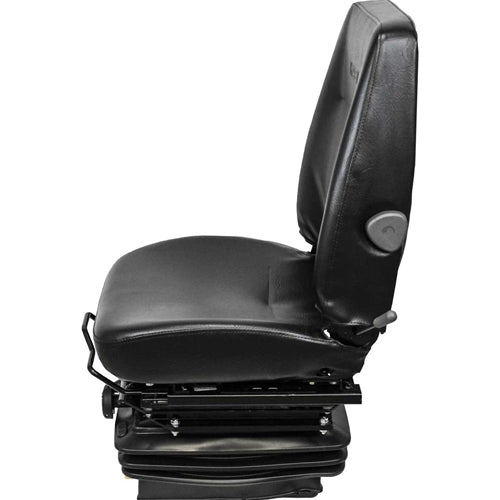

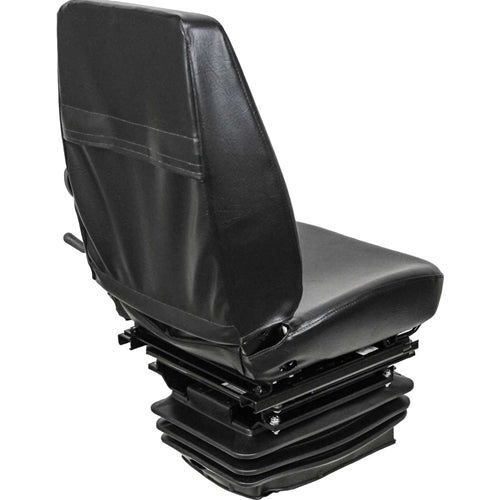

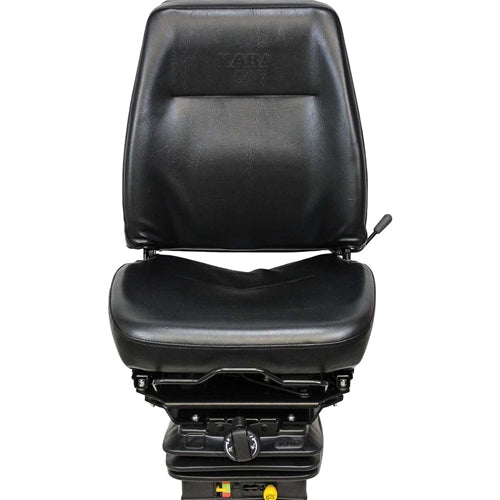

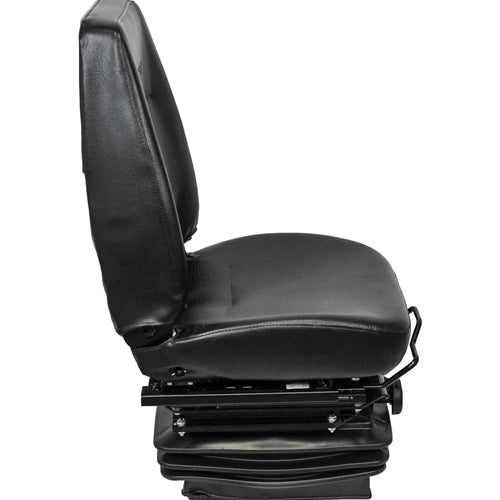

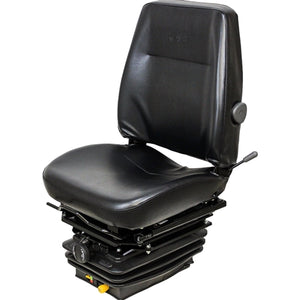

Excavator / Compactor / Loader Seat w/ Mechanical Suspension

Excavator / Compactor / Loader Seat w/ Mechanical Suspension

Regular price $1,798.95 USD
Regular price Sale price $1,798.95 USD
Sale Sold out
Shipping calculated at checkout.

Item # MS228

Color
View full details

Product Description

kab 111 271-3171 8144 8445 8415 11 100 151 8435 8429 8430 8437 232-4770 2324770 V0511-38504 V051138504 HV050-38100 HV05038100 V0521-38100 V052138100 2713171

Suspension Seat For Flat Mounting Surface (Some Assembly Required) for JD, AC, IH, FD, NH, MF, IR, Cat, CIH

For Multiple Applications Including But Not Limited To:

Caterpillar CP44, CP54, CP56, CP64, CP74, CP76, CS44, CS54, CS56, CS64, CS74, CS76

Komatsu WB140, WB140-2, WB146-5, WB150-2, WB156-5 (Requires Pedestal)

New Holland 555D, 555E, 655D (Requires Pedestal)

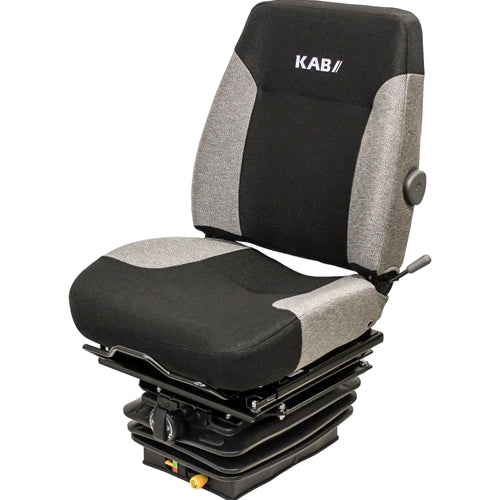

Durable fabric or vinyl covering
Narrow mechanical suspension for tight fit
Hi-back upper seat top
Adjustable backrest with 45° recline adds comfort and versatility

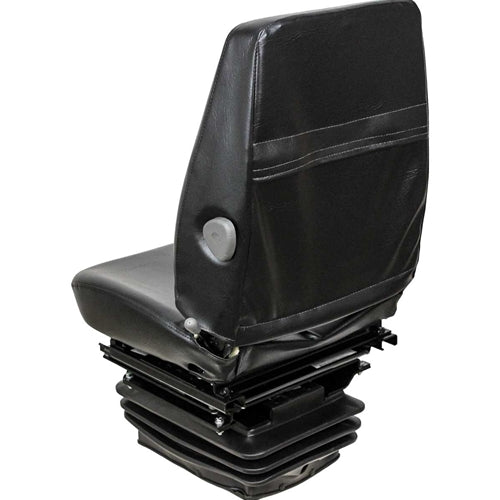

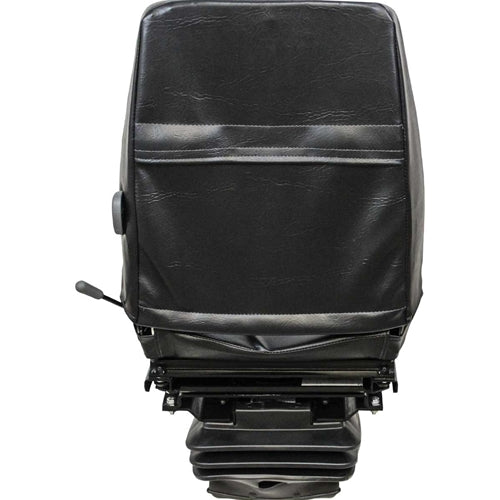

Document pouch to store owner's manual and other valuables
110 - 265 lb weight adjustment
Vertical height adjustment of 2.76"
Suspension stroke of 5.9"
6.3" fore/aft slide rail adjustment
Integrated swivel with 180° rotation
Ride indicator for best suspension setting
Includes a durable suspension cover to keep components free of dirt and dust.

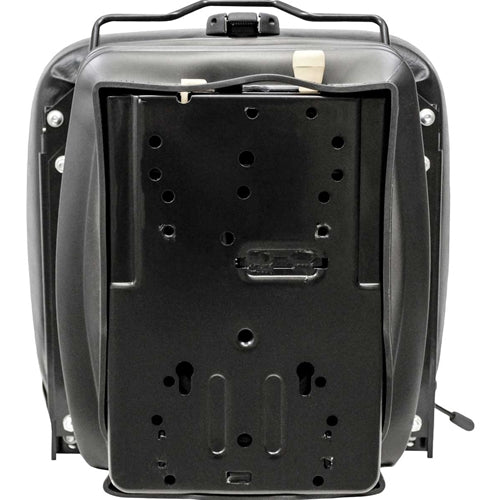

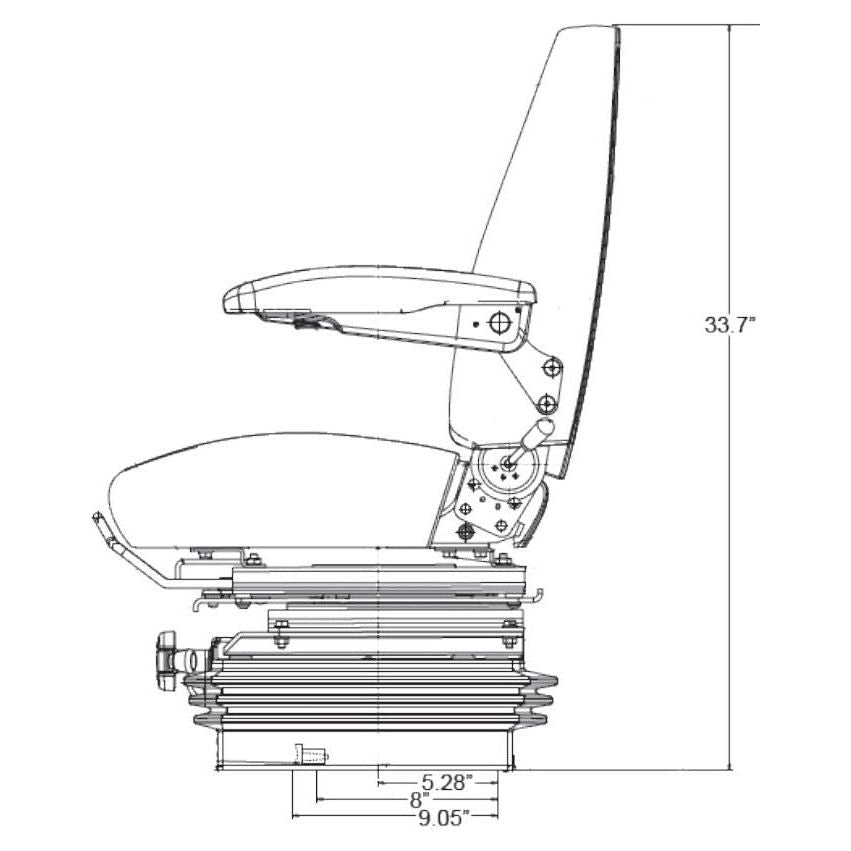

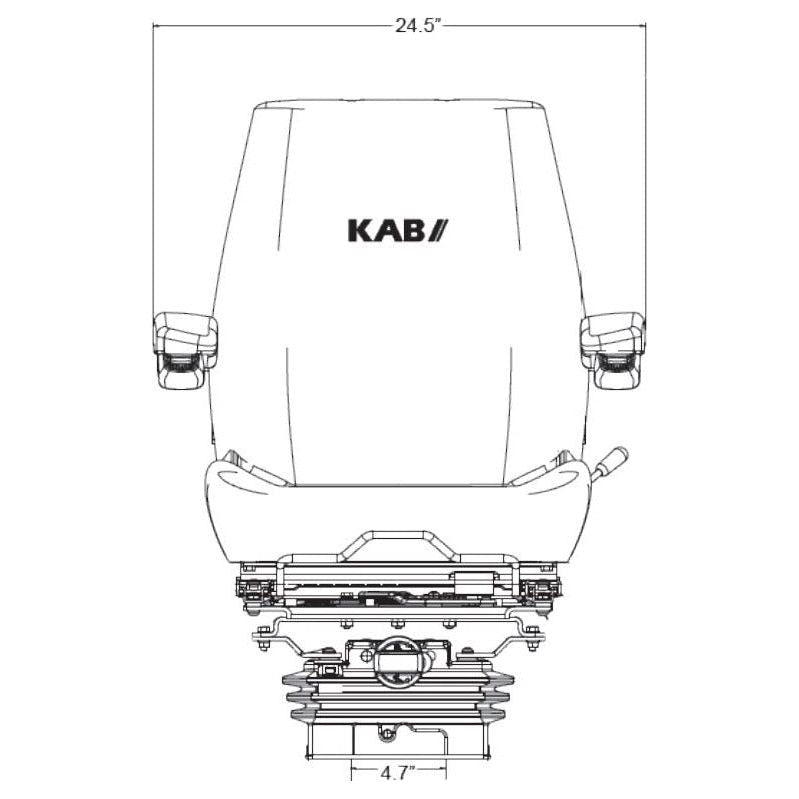

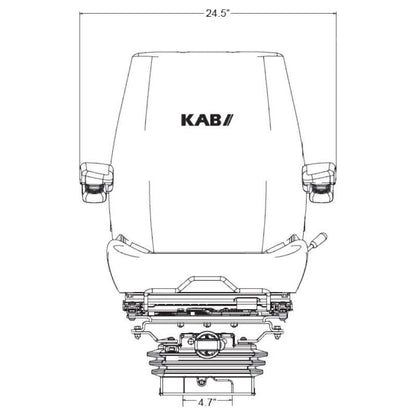

Bolt Pattern (W x L) 4-3/4" x 8" or 4-3/4" x 9.05"

For Armrest Use Item # AR165

Please note some models you may have to drill new holes in existing mounting platform, or require bracket fabrication to install this seat.

This Seat will fit a lot of models of AGRICULTURAL, TURF, CONSTRUCTION, COMMERCIAL, and INDUSTRIAL EQUIPMENT.

Item # MS228
