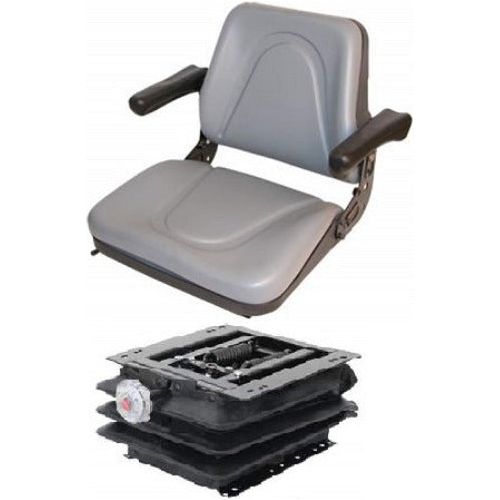

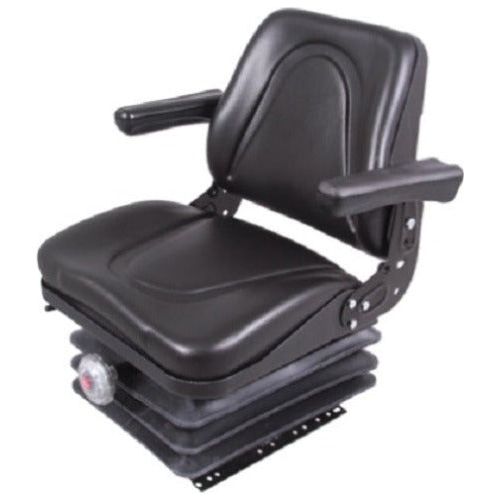

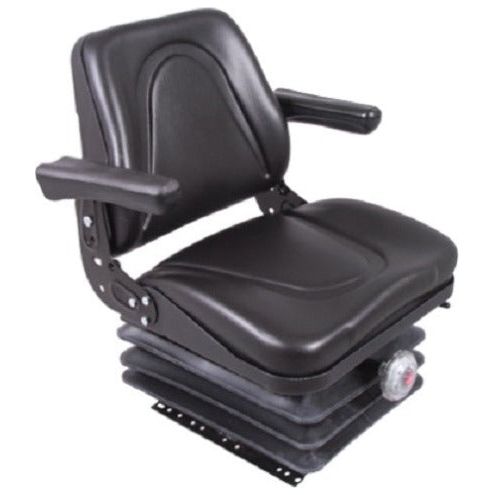

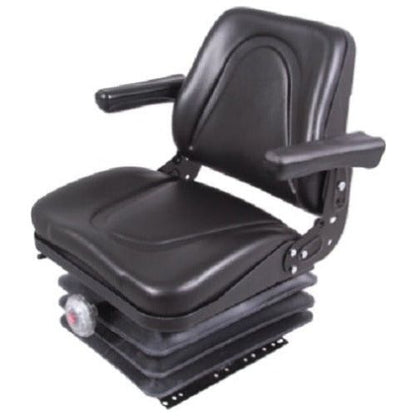

Compact Tractor Fork Lift Lawn Mower Loader Seat w/ Suspension

  • $489.95
    Unit price per
Shipping calculated at checkout.


Seat with Fold Down Back, Slide Tracks Flip-Up Armrests for JD, AC, IH, FD, NH, MF, BC, IR, Cat, CIH

For Multiple Applications Including But Not Limited To:

Agco DT160, DT180, DT180A, DT200, DT200A, DT205B, DT220A, DT225, DT240A, DT250B, DT275A, LT70, LT75, LT75A, LT85, LT85A, LT90, LT90A, LT95A, RT100, RT100A, RT110A, RT115, RT120, RT120A, RT130, RT135, RT140A, RT145, RT150, RT155A, RT95

Allis-Chalmers 6060, 6080, 7000, 7010, 7020, 7030, 7040, 7045, 7050, 7060, 7080, 7085, 7110, 7120, 7145, 8630, 8745, 8765, 8775, 8785, 9130, 9150, 9170, 9190, 9435, 9455, 9630, 9635, 9650, 9655, 9670, 9675, 9690, 9695, 9735, 9745, 9755, 9765, 9815

Case-IH ( MAXXUM 110, 115, 120, 125, 130, 140 ) MXU100, MXU110, MXU125, MXU130, MXU135, MX100, MX100C, MX120, MX135,  MX150, MX170, MX80C, MX90C, ( PUMA 115, 125, 140, 145, 210 ) 1070, 1170, 1270, 1290, 1294, 1370, 1390, 1490, 1570, 1690, 1896, 2090, 2094, 2096, 2290, 2294, 2390, 2394, 2470, 2590, 2594, 2670, 2870, 3294, 3394, 3594, 4490, 4690, 4890, 5120, 5130, 5140, 5220, 5240, 5250, 7110, 7120, 7130, 7140, 7150, 7210, 7220, 7230, 7240, 7250, 870, 8910, 8920, 8930, 8940, 8950, 9110, 9130, 9150, 9170, 9180, 9210, 9230, 9240, 9250, 9260, 9270, 9280, 9310, 9330, 9370, 9380, 9390, 970

Deutz DX3.50, DX3.70, DX3.90, DX4.70, DX6.30, DX6.50, DX7.10, 6260, 6265, 6275

Ford / New Holland TL100, TL70, TL80, TL90, TS100, TS110, TS115, TS115A, TS125A, TS130A, TS135A, TS90, TW15, TW20, TW25, TW30, TW35, TW5, T5060, T6030, T6070, T6080, T7030, T7040, T7070, 4835, 5635,  6635, 6640, 7410 ,7635, 7700, 7710, 7740, 7810, 7910, 8210, 8240, 8340, 8360, 8560, 8630, 8700, 8730, 8830, 9030, 9700

John Deere 5065M, 5075M, 5085M, 5095M, 5095MH, 5105M, 6010, 6100,  6100D, 6110, 6110D, 6110L, 6115D, 6120, 6125D, 6130D, 6140D, 6200, 6210, 6210L, 6215, 6220, 6230, 6300, 6310, 6310L, 6310S, 6320, 6320L, 6330, 6400, 6410, 6410L, 6410S, 6415, 6420, 6420L, 6430, 6500, 6510, 6510L, 6510S, 6520L, 6615, 6715, 6920, 7130, 7220, 7230, 7320, 7330, 7420, 7430  7520, 7530 7720, 7820, 8230, 8230T,8330, 8330T, 8430, 8430T, 8440, 8530, 8630, 8640

Kubota M105S, M105X, M110, M110GX, M110X, M120, M125X, M4800SU,  M5040, M5700, M6040, M6800, M7040, M7580, M8200, M8540, M8580, M9000, M95S, M95X, M9540, M9580

Massey Ferguson 2640, 2680, 2705, 2745, 2775, 3060, 3070, 3075, 3120, 3315, 3325, 3330, 3340, 3350, 3355, 3525, 3545, 3615, 3625, 3635, 3645, 3650, 3660, 3680, 3690, 4225, 4235, 4240, 4243, 4245, 4253,4255, 4260, 4263, 4265, 4270, 4325, 4335, 4345, 4355, 4360, 4370, 5425, 5435, 5445, 5455, 5460, 5465, 5470,  5475,5480, 6150, 6170, 6180, 6190, 6235, 6245, 6255, 6270, 6280, 6290, 6445, 6455, 6460, 6465, 6470, 6475, 6480, 6485, 6490, 6495, 6497, 6499, 670, 690, 698, 699, 7465, 7475, 7480, 7485, 7490, 7495, 7497, 7499, 8110, 8120, 8140, 8150, 8160, 8210, 8220, 8240, 8250, 8270, 8280, 8450, 8460, 8470, 8480, 8650, 8660, 8670, 8680, 8690

McCormick (2002 & Newer) CX100, CX105, CX75, CX85, CX90, CX95, MC100, MC105, MC110, MC115, MC120, MC130,  MC135, MC90, MTX110, MTX120, MTX125, MTX135, MTX140, MTX145, MTX150, MTX165, MTX175, MTX185, MTX200, TTX190, TTX210, TTX230, XTX185, XTX215,  ZTX230, ZTX260, ZTX280

Steiger BEARCAT I, BEARCAT III, BEARCAT IV, CM SERIES IV, COUGAR I, COUGAR III, COUGAR III ST SERIES, COUGAR IV, KM SERIES IV, LION, PANTHER, PANTHER III ST SERIES, PTA297, PTA310, PTA325, PT220,  PT225,  ST225, ST310, ST320, ST325, ST350, TIGER III, TIGER SERIES IV

Versatile 1150V, 1156V, 500, 555, 756, 835, 836, 846, 855, 856, 875, 876, 895, 9030V, 9184, 9280, 9282, 935, 936, 9384, 945, 946, 9480, 9482, 9484, 950, 955, 956, 9680, 9682, 9684, 975, 976, 9880, 9882, 9884

White 100, 120, 125 WORKHORSE, 140, 145 WORKHORSE, 160, 170 WORKHORSE, 175, 185, 4-175, 4-210, 4-225, 4-270, 6065, 6085, 6105, 6124, 6125, 6144, 6145, 6175, 6195, 6215, 6410, 6510, 6710, 6810, 8310, 8410, 8510, 8610, 8710, 8810

Ideal for Forklifts, commercial turf, construction equipment, ground service equipment, skid steers, specialty vehicles and utility tractors / vehicles.

This Seat Does Not Have Mounting Holes On Back For SMV Sign.

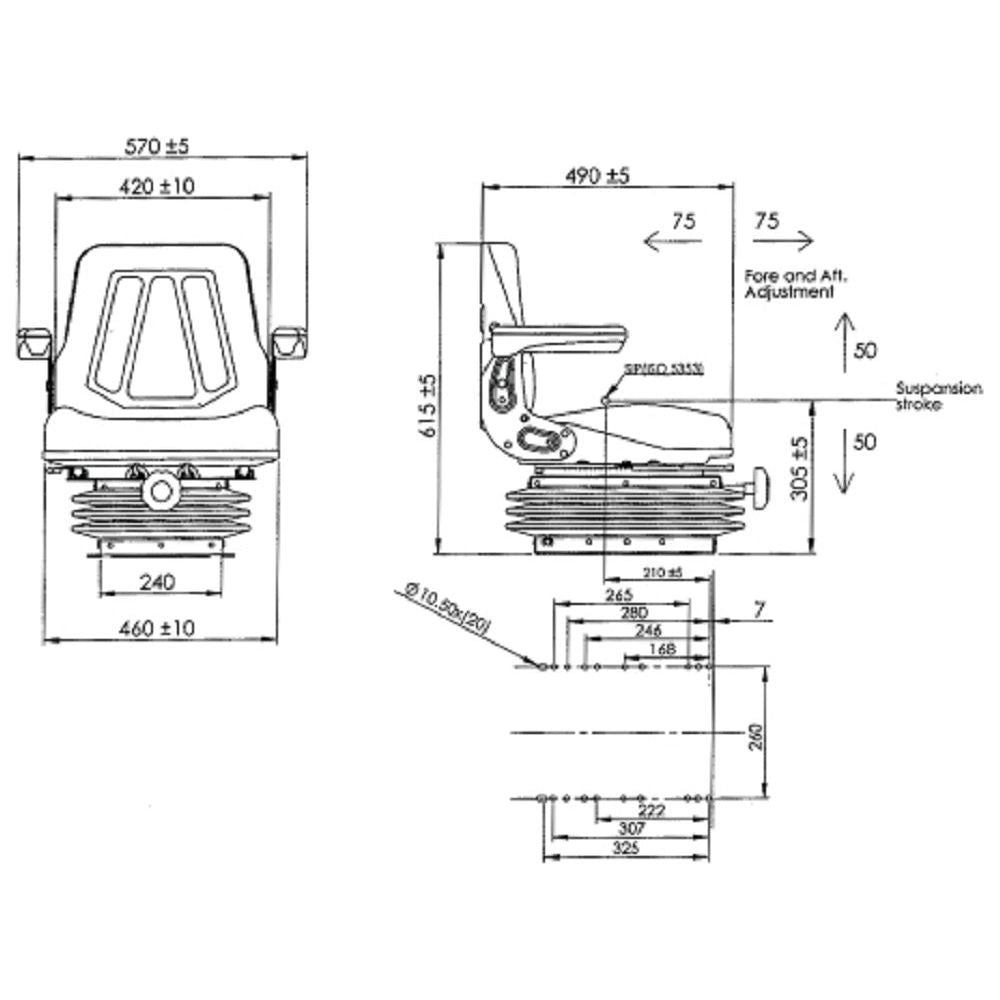

Suspension Stroke 4" / 100mm

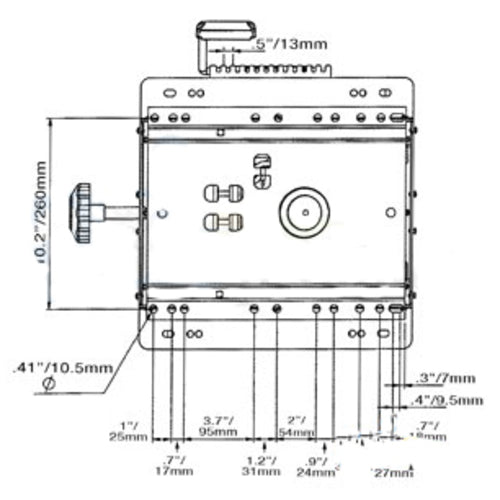

Slide Track Fore & Aft Travel Is 6" / 150mm, C to C rail to rail is 6.75"

Weight Adjustment 110 - 330 lbs. / 50 - 150kg

Black long lever is for the slide track

Please note some models may vary and you may have to drill new holes in existing mounting platform to install this seat.

This Seat will fit a lot of models of AGRICULTURAL, TURF, CONSTRUCTION, COMMERCIAL, and INDUSTRIAL EQUIPMENT.

Item # MS216

AM135712, AM136801, AM134955, AM106109, AM100163, AM105898, AM106109, AM125736, AM100163, AM102953, AM103284, TCA21044, TCA10005, GY20808, AM108058, AMT576, AM123666, AM136400, AM131704, AM131461, AM132775, AM122871, AM126865, AM140435, AM141105, LVA10029, AM144591, AT63325, SU-230015BK, AT315073, AT327447, AT344971, AT347476, AT361224, KV24167, TCA18026, 792226, 793661 7805 87019264, 86610722, 86575476, 87019265, CCZYYS2, 87019258, 86591414, 86579884, 86591378, 86591379, 87019259, YS02, AT315073, AT327447, AT344971, AT347476, AT361224, KV24167, A-87542391, 87542391, 116-2943, 1162943, 400328, AM108058, AT63325, AT315073, AT315073, AT327447, AT344971, GG420-32536, GG420-33192, GG420-33358, 355000BK, 378548, V-930, 2PNQNV0, MTA-T500BL, T500BL-RAP, T500BL-FBM, 030921-1154-951, 030921-951, A-T500BL-AI, 0278302, 25379, 716925, 72-1045, A-T500BL, A-T500BL-A, B1T500BL, B1T500BL-A, ST15, 030921-2407, 030921-1154-2407, A-T500GY, SLP95-19744T, T500GY-RAP, T500GY-IRT, A-T500GY-2, A-T500GY-4-3, 35500BK, T500ARM, MST500ARM, ST T500ARM, A-T500ARM, T500ARM-FBM, AI-T500ARM, A-T500ARM-AI, A-T500ARM-A, JZS0355BK Y03011BK, 6632388 S.71651 S.128993 A-MSG95741BNC, SW09001, SLP910166409, MSG95741, MSG95741BNC, A-MSG95741BNC-AI, MSG95741-A, SD021596, ATL09, HEV599255, MSG95741GRC, A-MSG95741GRC, A-MSG95741GRC-AI, SLP78-33854T, SW09002, A-MSG95GS, A-MSG95GS-AI, 20804, 12142, WN-8078, WN8078, SEN10-0122, SEN100122, A-MA2C12, SLP78-74778T, A-MA2C12-AI A-SSM200 A-SSM200-AI SSM200-FBM SLP80-87288T MM2 / F3-NS-100 arimis
