Compact Excavator Tractor Loader Mower Gator High Back Seat

High Open Back Seat for JD, AC, IH, FD, NH, MF, Cat, IR, CIH

For Multiple Applications Including But Not Limited To:

Riding Lawn Mowers, Gators, Compact Tractors, ZTRs, Utility Vehicles, Loaders

This High-Open-Back Lawn Mower Seat offers numerous mounting patterns and provides all-day comfort and support for riding lawn mowers.

The blow-molded poly seat has an ergonomic cushion with waterproof vinyl cover and open back to prevent water from pooling on the seat.

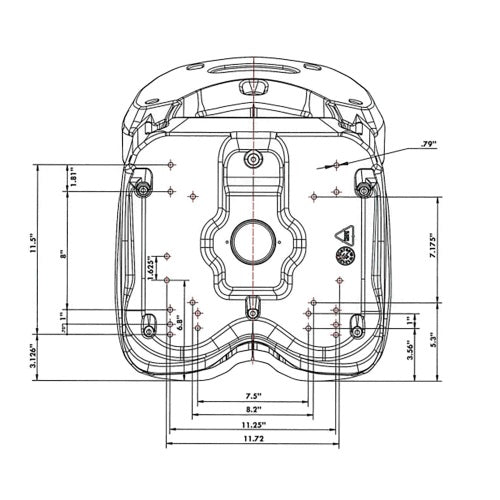

Bolt Patterns 8-1/4" x 7-1/4",  11-1/4" x 8",  11-1/4" x 9-3/4",  11-1/4" x 9.8",  11-1/4" x 10.8",  11-1/4" x 11-1/2"

This Seat Does Not Have Mounting Holes On Back For SMV Sign.

Accepts Round Operator's Presence Switch. (Not Included)

Please note some models may vary and you may have to drill new holes in existing mounting platform to install this seat.

Your Seat may have Metric 8 x 16 Mounting Bolts.
This Seat Uses Standard 5/16" x 3/4" Bolts.

This Seat will fit a lot of models of AGRICULTURAL, TURF, CONSTRUCTION, COMMERCIAL, and INDUSTRIAL EQUIPMENT.

Item # WS358

^{145000BK 145000YE 145000GR}
