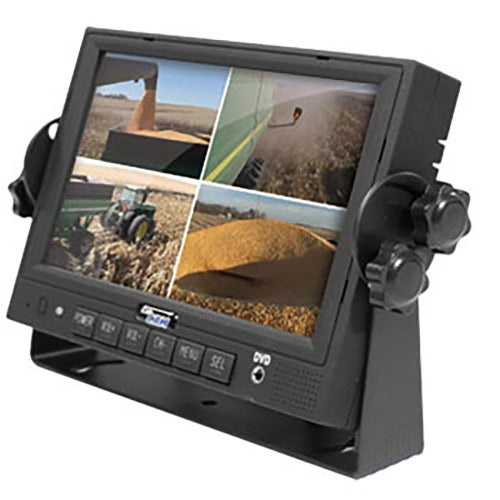

CabCAM 7" HD Color Quad Observation Video Monitor

Color Quad TFT Monitor. The quad monitor is capable of viewing 1, 2, 3, or 4 cameras at one time utilizing picture-in-picture technology. Each camera can be controlled independently allowing control over contrast, hue, mirror & upside down functions. The quad monitor also has an embedded control box for direct power input for cameras.

For use with wired Quad CabCAM systems.

Color LCD screen with Embedded control box for direct power input for cameras.

AV1, AV2, AV3, AV4 video inputs allow four camera capability

DVD input, RCA jacks for video & audio output, loudspeaker, 27 Pin wire harness

Power indicator, remote receiving window, POWER, MENU, Volume, Channel & AV Shift buttons

HD cameras will not work with non-HD monitors
Non-HD wired cameras will work with HD monitors, but the video will not be shown in HD

Item # CC104

^{A-QM7127R-AI CAL50-0018 CAL500018 QM7127R A-QM7127 HDM1545 QM7127R}
