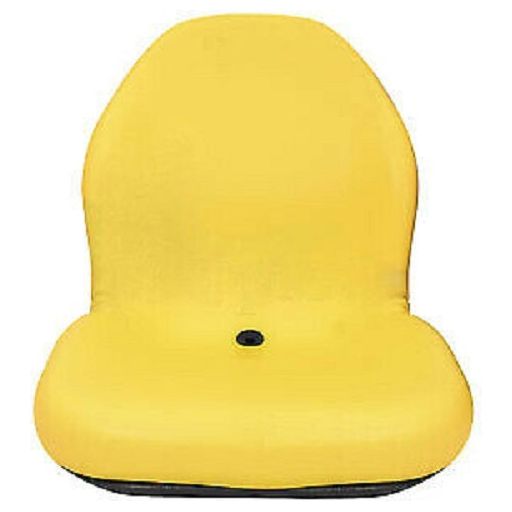

Bucket Seat for John Deere 650, 750, 850, 950, 1050, 900HC

High Back Seat w/ Brackets for JD ( some assembly required )

For Multiple Applications Including But Not Limited To:

John Deere 650, 750, 850, 950, 1050, 900HC

Kubota Various Models

One-Piece Plastic Pan With Durable Vinyl Contoured Foam Cushion To Provide Maximum Comfort and Durability.
Central Drain Hole Prevents Water Buildup.
Accepts Round Operator's Presence Switch. (Not Included)
Pin Hole Size 3/8"
Bracket Measurement inside  7" - 7-1/4"
3- Position Front & Back Adjustment

This Seat Does Not Have Mounting Holes On Back For SMV Sign.

Your Seat may have Metric 8 x 16 Mounting Bolts.
This Seat Uses Standard 5/16" x 3/4" Bolts, and comes with Mounting Brackets

Optional Armrest Item # AR108

JUST REMOVE YOUR PIN AND OLD SEAT AND INSTALL THE NEW SEAT WITH YOUR PIN. IT IS JUST THAT EASY !

Item # WS309
