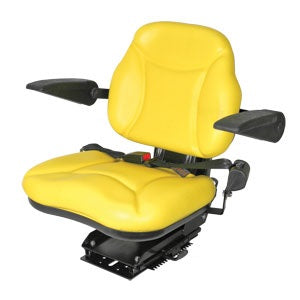

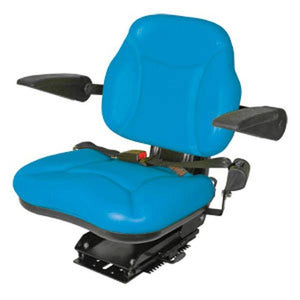

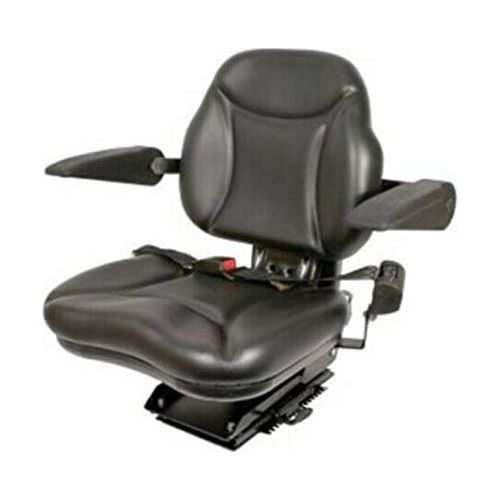

Big Boy Tractor Loader Seat w/ Suspension
Tractor Seat with Armrests for JD, AC, IH, FD, NH, MF, Cat, CIH
For Multiple Applications Including But Not Limited To:
John Deere, Massey Ferguson, Case - International Harvester, Farmall, Long, Ford / New Holland, White, and more.

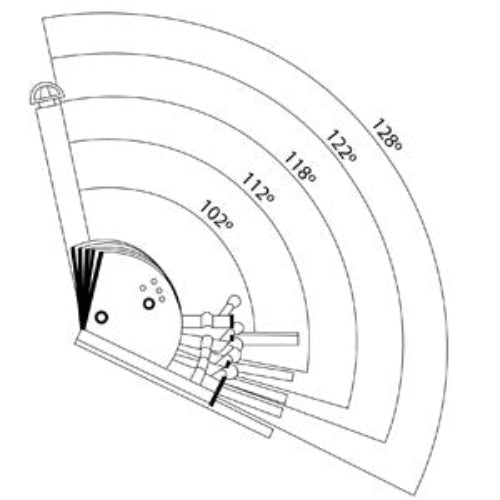

Work in comfort on your midsize tractor by equipping it with this vinyl seat. The seat features weight adjustment and can support operators up to 300 lbs. Comes standard with flip-up, adjustable armrests. With adjustable height, fore and aft tilt and base angle, you'll find this seat can be made to fit any application.
Vinyl Seat with 3 Position Angle Mounting, Slide Tracks, and Weight Adjustment. Seat Utilizes 2 Springs and 1 Shock.

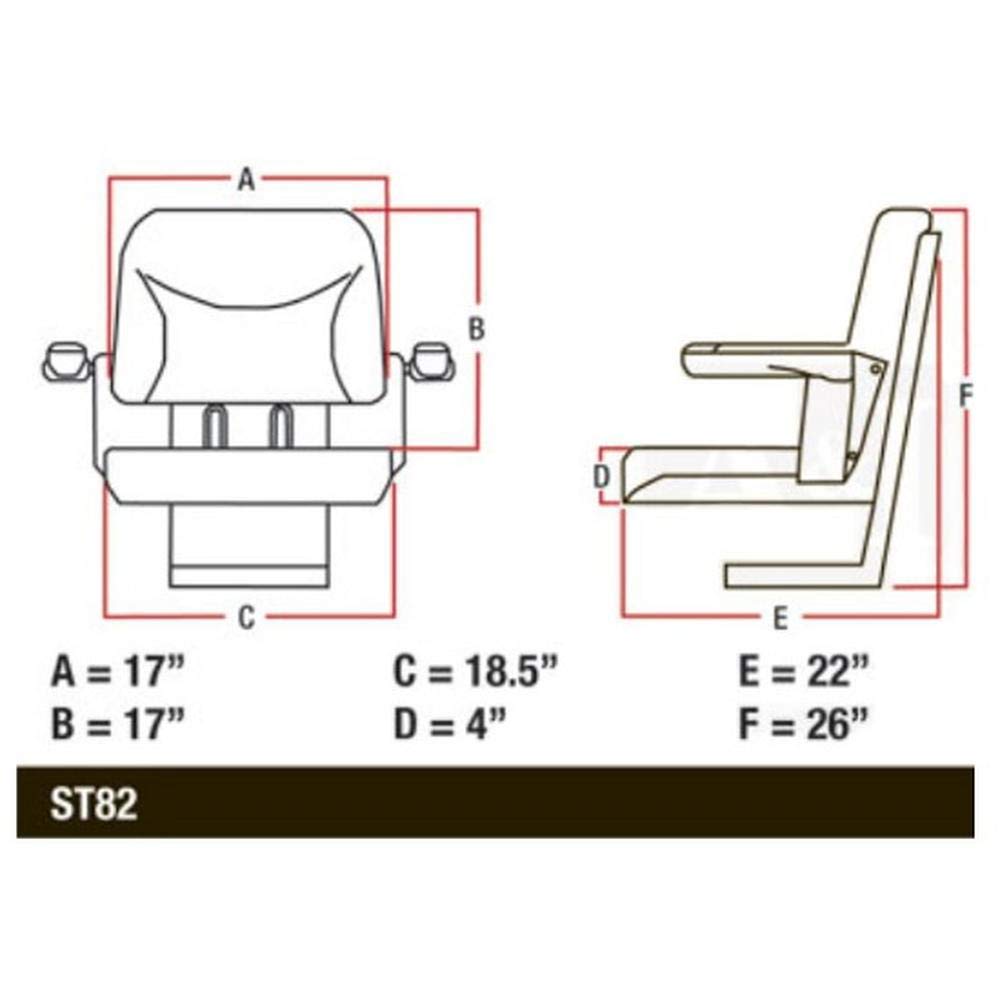

29" Wide Outside to Outside of Arm Rests.
From Floor to Top of Back Rest is 25.50".
From Floor to Top of Seat Cushion is 12.250".
Cushion is 18.00" Wide by 15.00" from Front to Back.
Height Range 24" - 26 3/4"
Capacity lbs. 300

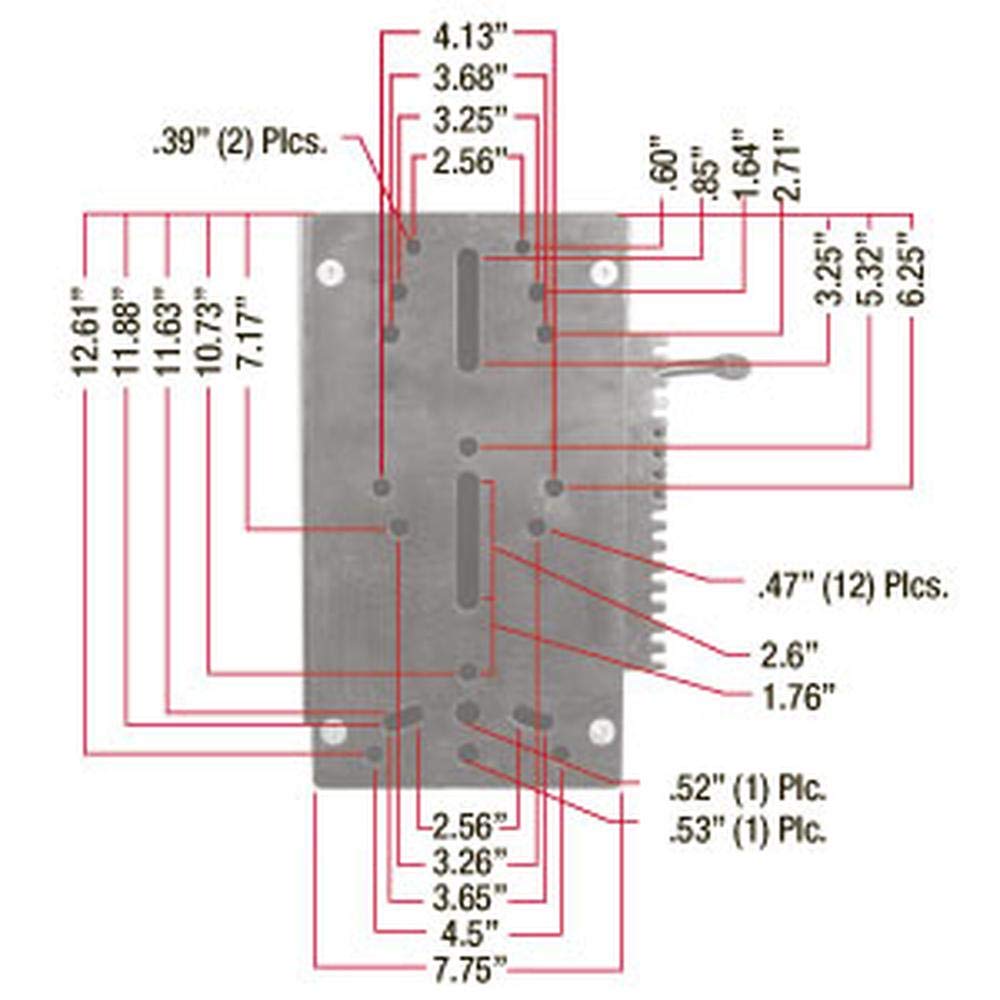

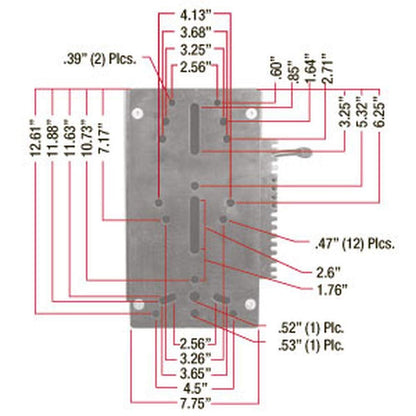

Please note some models may vary and you may have to drill new holes in existing mounting platform to install this seat.
Does NOT have provision for operators presence switch.
This Seat will fit a lot of models of AGRICULTURAL, TURF, CONSTRUCTION, COMMERCIAL, and INDUSTRIAL EQUIPMENT.
Item # MS142
TS1060HD SA3928
