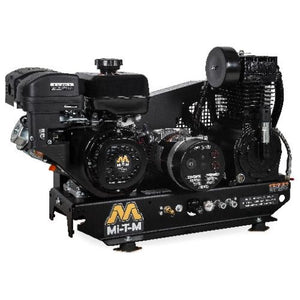

Base-Mount Two Stage Compressor / Generator (Gas) AG2-SM14-B
Ideal for jobsites and work trucks, the air compressor/generator combination units go a long way to increasing productivity. Operate air tools and power electrical tools anywhere.
Compressor Pump: Cast iron Two Stage compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Generator: Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A receptacles and (1) NEMA L6-20R 240V, 20A receptacles
Frame: 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard
Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 12 or 16 ½-inch fly wheel · Quality pilot valve unloader
Equipped with 150-PSI maximum rated regulator.
Limited Warranties:
- 2 Year Alternator
- 2 Year Pump Exchange
- 3 Year Mi-T-M Engine
Specifications
CFM @ 90 PSI 16.4
CFM @ 175 PSI 15.7
Alternator Max. Output 4000 watts
Generator with Compressor Load Continuous 2300 watts
Generator without Compressor Load 3500 watts
Engine 420cc 13 Hp Mi-T-M OHV
Length 47.00 in. Width 22.00 in. Height 28.00 in. Weight 325 Lb
