Back Suspension Fork Lift Seat by Pilot

$298.95
Unit price per

Shipping calculated at checkout.

Back Suspension Seat for JD, AC, IH, FD, NH, MF, BC, Cat, IR, CIH

For Multiple Applications Including But Not Limited To:

Bobcat 324, 418, 463, S70

Bomag BW90AD-2, BW120AD-4, BW120SL-5, BW124DH-40, BW124PDH-40, BW145D-40, BW145DH-40, BW177D-40, BW177DH-40, BW177PDH-40, BW211D-3, BW211D-40, BW211D-50, BW213DH-40

Broderson IC-80-3J, IC-200-2F, IC-200-3G

Caterpillar EC25K, F35, GC18K, GC20K, GC30, GP40KL, GP50K, M50D, M100D

JCB VMT 270, VMT 280

Hyster H50XM

Takeuchi TB016, TB216

Taylor-Dunn C-425, C-426-AC, E-455, TT-316AC, TC-30/50C

This is a semi-suspension seat that has a suspension stroke up to 1.5". This heavy-duty replacement seat can be used in skid steers, material handling equipment and ground service equipment.

Optional Armrest Item # AR174
Optional Hip Restraint Item # AR193

Durable Black Vinyl covering
Mechanical suspension
Contoured foam cushions for added comfort
Fold-down backrest for easy access to behind seat and for protection against weather
1.5" suspension travel
Slide rails provide fore/aft adjustment
130 - 265 lb weight adjustment
Comes standard with operator presence switch

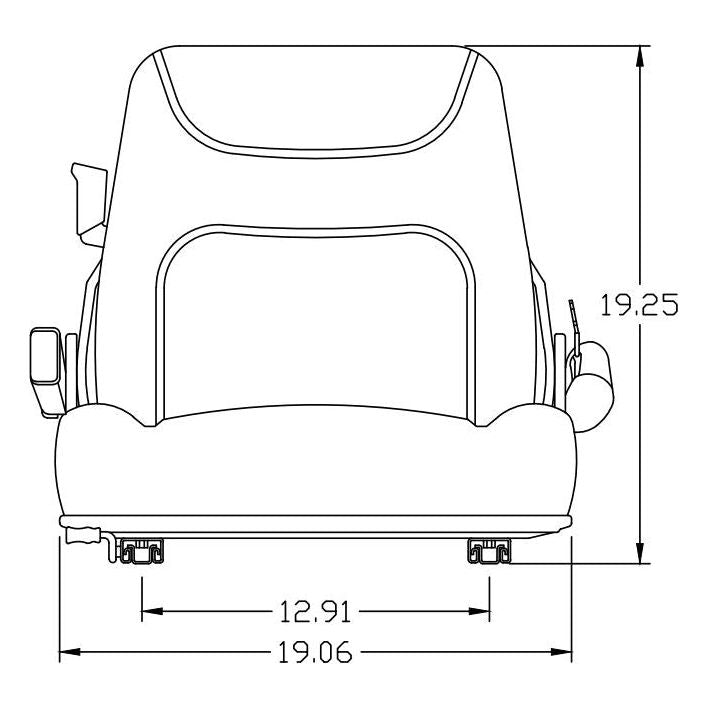

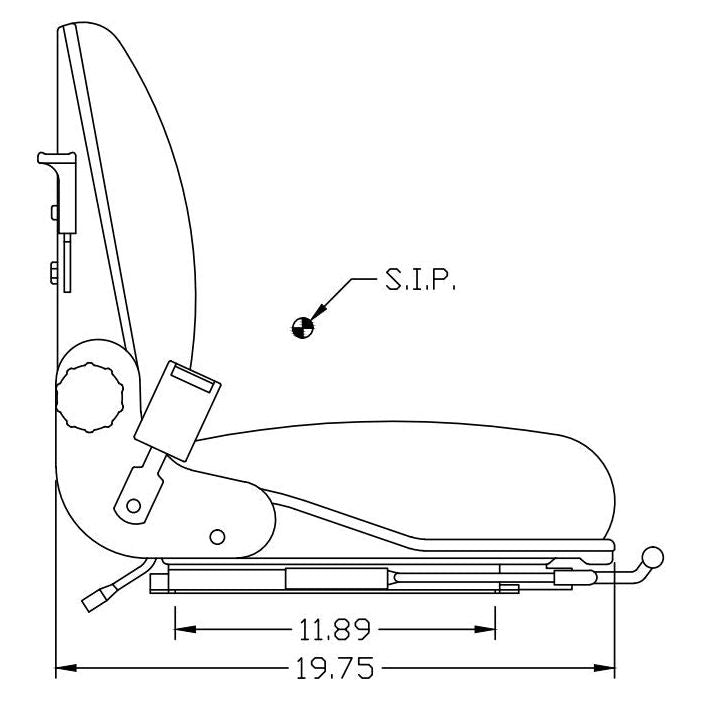

Mounting Patterns Include:
(Width x Length)
8" x 10-1/4"
12-7/8" x 8"
11-1/4" x 11"
13" x 11"

Please note applications may vary and you may have to drill new holes in existing mounting platform, or require bracket fabrication to install this seat.

This Seat will fit a lot of models of AGRICULTURAL, TURF, CONSTRUCTION, COMMERCIAL, and INDUSTRIAL EQUIPMENT.

Item # MS243
