ACS-23175-80HM

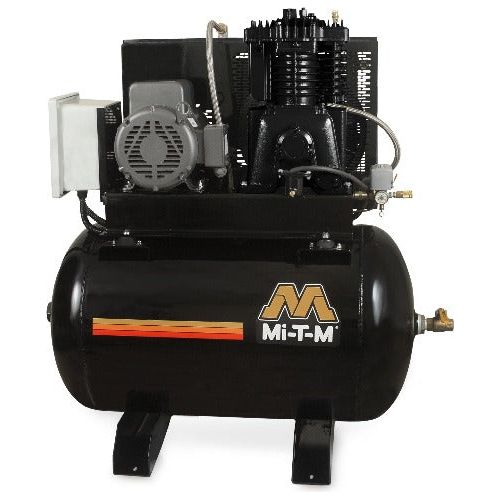

80 Gallon Two Stage Air Compressor (1p 230v) ACS-23175-80HM

  • $7,950.95
    Unit price per
Shipping calculated at checkout.


The M Series air compressors are a great solution for the most demanding industrial applications. Available in many motor configurations and with either vertical or horizontal tank options.

Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor: Industrial low RPM motor · Magnetic start for thermal overload protection

Frame: Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Totally enclosed powder coated belt guard

Components: ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve

Limited Warranties:
  • 1 Year Electric Motor
  • 2 Year Pump Exchange

      CFM @ 175 PSI  23.5

      Horsepower/Motor 7.5 HP, 230V, 1Ø, 31.0A

      Pump RPM 1250

      Tank Size 80 gallon

      Bolt Down (L x W) 20.75 x 23.50 in.

      Length 52.00 in. Width 26.50 in. Height 53.00 in.  Weight 709 Lb
