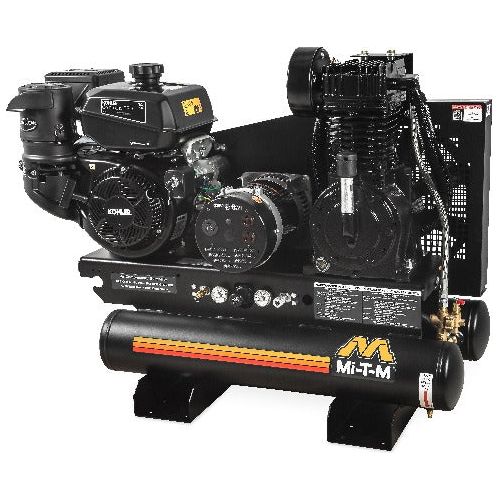

8 Gallon Two Stage Compressor / Generator (Kohler) AG2-SK14-08M1

Ideal for jobsites and work trucks, the air compressor/generator combination units go a long way to increasing productivity. Operate air tools and power electrical tools anywhere.

Compressor Pump: Cast iron Two Stage compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator: Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A receptacles and (1) NEMA L6-20R 240V, 20A receptacles

Frame: Powder coated twin tank receivers · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 12 or 16 ½-inch fly wheel · Quality pilot valve unloader

Equipped with 150-PSI maximum rated regulator.

Limited Warranties:

• 2 Year Alternator
• 2 Year Pump Exchange
• 3 Year Mi-T-M Engine

Specifications

CFM @ 90 PSI 16.4

CFM @ 175 PSI 15.7

Alternator Max. Output 4000 watts

Generator with Compressor Load Continuous 2300 watts

Generator without Compressor Load 3500 watts

Displacement/ Engine  429cc 14 Hp Kohler CH440 OHV

Length 44.00 in. Width 22.00 in. Height 34.00 in.  Weight 365 Lb
