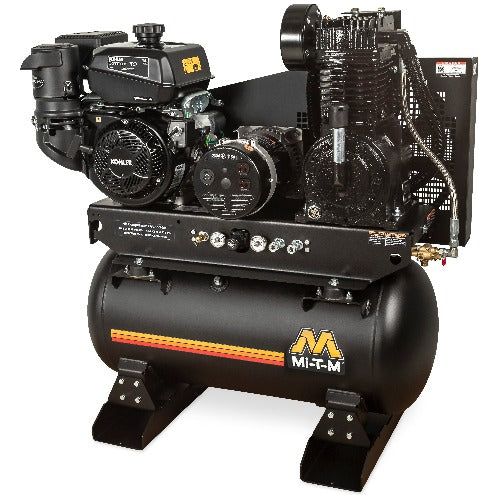

30 Gallon Two Stage Air Compressor / Generator (Kohler) AG2-SK14-30M

The versatile air compressor and generator combination comes with an abundance of storage capacity and features a powerful two stage compressor and 4000-watt generator.

Compressor Pump: Cast iron Two Stage compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator: Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A and (1) NEMA L6-20R 240V, 20A receptacles

Frame: Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16 ½-inch fly wheel · Quality pilot valve unloader

Equipped with 150-PSI maximum rated regulator.

Limited Warranties:

• 2 Year Alternator
• 2 Year Pump Exchange
• 3 Year Kohler Engine

CFM @ 90 PSI  16.4

CFM @ 175 PSI  15.7

Alternator Max. Output 4000 watts

Generator with Compressor Load Continuous 2300 watts

Generator without Compressor Load 3500 watts

Engine 429cc 14 Hp Kohler  CH440 OHV

Tank Size 30-gallon

Length 40.00 in. Width 24.50 in. Height 45.00 in.  Weight 450 Lb
