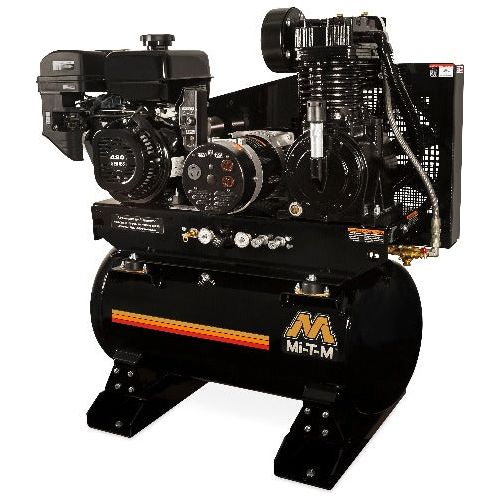

30 Gallon Two Stage Air Compressor / Generator (Gas) AG2-SM14-30M

The versatile air compressor and generator combination comes with an abundance of storage capacity and features a powerful two stage compressor and 4000-watt generator.

Compressor Pump: Cast iron Two Stage compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator: Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A and (1) NEMA L6-20R 240V, 20A receptacles

Frame: Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16 ½-inch fly wheel · Quality pilot valve unloader

Equipped with 150-PSI maximum rated regulator.
49 state engine. Not for sale in California.

Limited Warranties:

• 2 Year Alternator
• 2 Year Pump Exchange
• 3 Year Mi-T-M Engine

CFM @ 90 PSI  16.4

CFM @ 175 PSI  15.7

Alternator Max. Output 4000 watts

Generator with Compressor Load Continuous 2300 watts

Generator without Compressor Load 3500 watts

Engine 420cc 13 Hp Mi-T-M  OHV

Tank Size 30-gallon

Length 40.00 in. Width 24.50 in. Height 45.00 in.  Weight 450 Lb
