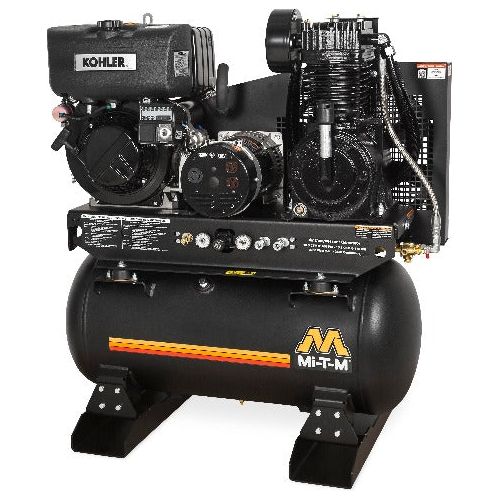

30 Gallon Two Stage Air Compressor (Diesel) Kohler AG2-SKD9-30M

  • $9,779.95
    Unit price per
Shipping calculated at checkout.

A reliable Kohler diesel engine powers this beast. Developed for the agricultural and construction industries, this model can take anything you throw at it. Mount it on the back of a service truck and take it to the most remote locations to get big jobs done.

Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator: Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A and (1) NEMA L6-20R 240V, 20A receptacles

Engine: Electric start – battery, box and cables not included · Glow plug equipped for easy starting in cold temperatures

Frame: Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16 ½-inch fly wheel · Quality pilot valve unloader

Equipped with 150-PSI maximum rated regulator.

Limited Warranties:
  • 2 Year Alternator
  • 2 Year Pump Exchange
  • 3 Year Kohler Engine

    CFM @ 90  16.4

    CFM @ 175  15.7

    Alternator Max. Output 3000 watts

    Generator with Compressor Load Continuous 2300 watts

    Generator without Compressor Load 2750 watts

    Engine  9.1 Hp Kohler Diesel CH440 OHV

    Tank Size 30-gallon

    Length 41.00 in.  Width 23.00 in.  Height 47.00 in.  Weight 489 Lb
