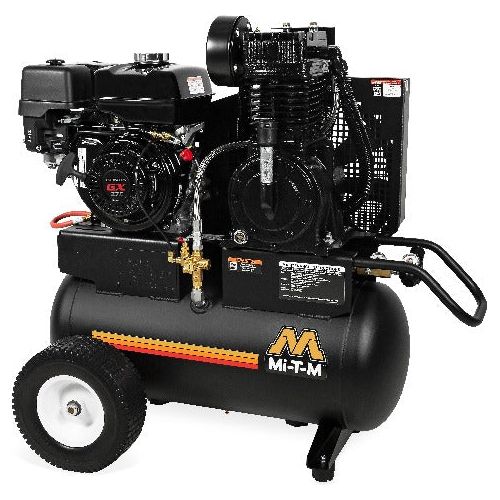

20 Gallon Two Stage Portable Compressor (Honda) AM2-PH09-20M

Mount in a service truck and you’ll have enough air power wherever you go. Built for optimum performance and efficiency, the tank gives you 20-gallons of air storage capacity.

Compressor Pump: Cast iron Two Stage compressor · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Frame: Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · 14-gauge powder coated two-piece belt guard · 13-inch flat-free tires

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16 1/2-inch fly wheel · Quality pilot valve unloader

Equipped with 150-PSI maximum rated regulator.
49 state engine. Not for sale in California.

Limited Warranties:

• 2 Year Pump Exchange
• 3 Year Honda Engine

CFM @ 175  17.2

Displacement/ Engine 270cc 8.5 Hp Honda GX270 OHV

Engine Idle Control  Pneumatic

Length 46.00 in. Width 26.00 in. Height 39.50 in. Weight 306 Lb
