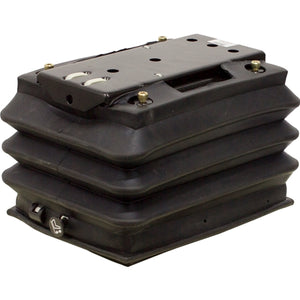

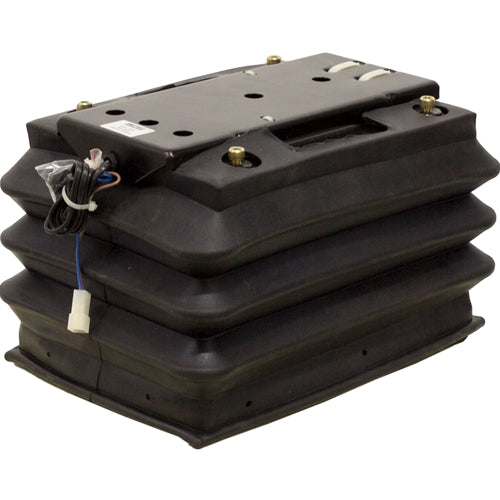

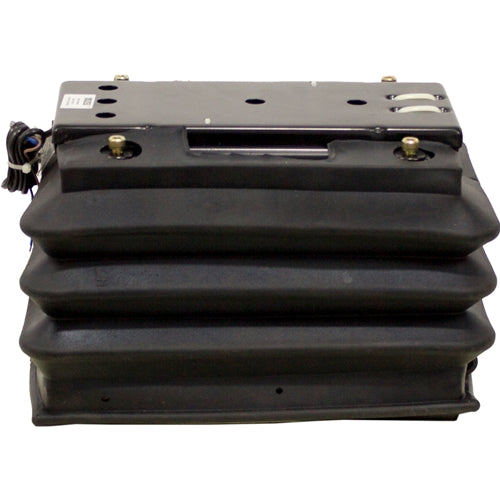

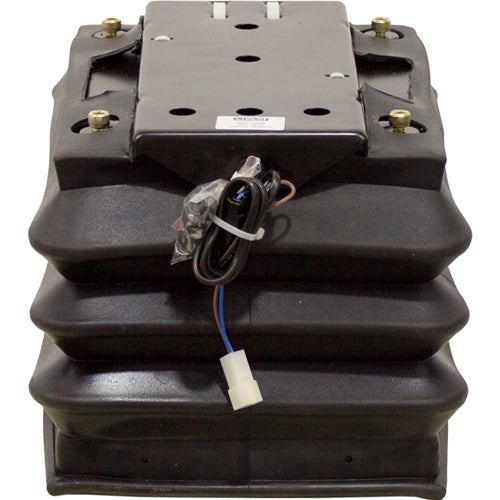

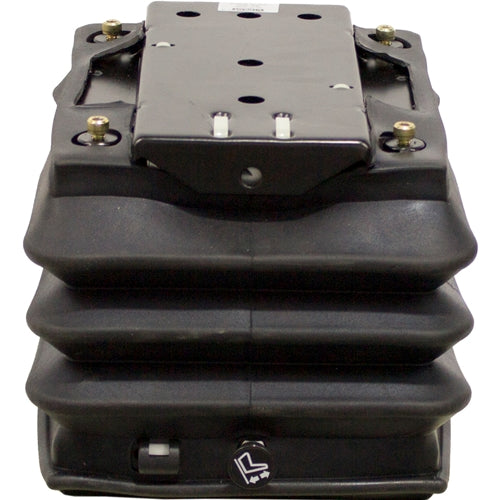

12v Narrow Tractor Seat Air Suspension for Pilot
Air Seat Suspension for JD, AC, IH, FD, NH, MF, Cat, IR, CIH
For Multiple Applications Including But Not Limited To:
Tractors, Implements, & Heavy Construction / Industrial Equipment Applications.
Easily swap out the old or add this suspension in your equipment. Over time & with a lot of use, it is not uncommon for them to wear out or get damaged.
12v Compact Air Suspension as a direct replacement to provide vibration reduction to improve comfort, performance and productivity in your ag or construction equipment, ensuring that you have the smoothest ride possible.
Ideal for smaller utility tractors

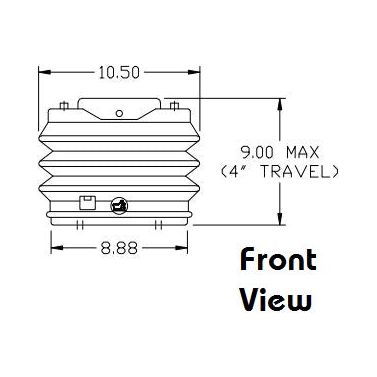

Base width of 8.85"
Self-contained 12-Volt compressor

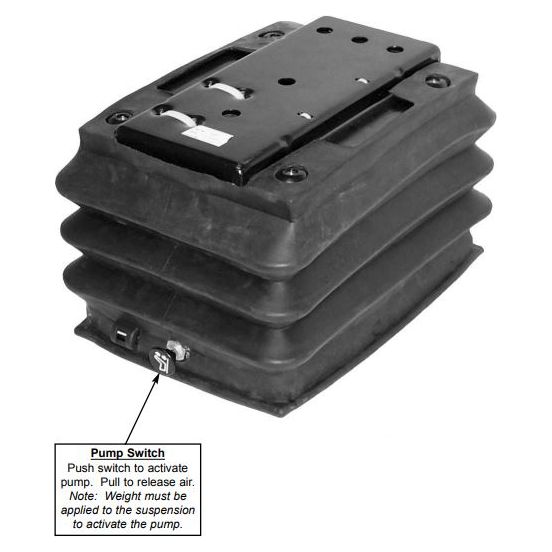

Easy to reach pump switch
3.13" suspension travel
Weight adjustment
9" maximum height
Durable suspension cover to keep components free of dirt and dust
Self-contained 12-Volt compressor
Easy to reach pump switch
3.13" suspension travel
Weight adjustment
9" maximum height
Durable suspension cover to keep components free of dirt and dust
110 - 265 lb weight adjustment

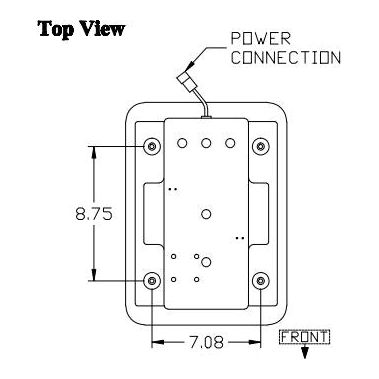

Top mount 7.08" side-to-side, 8.75" front-to-back.

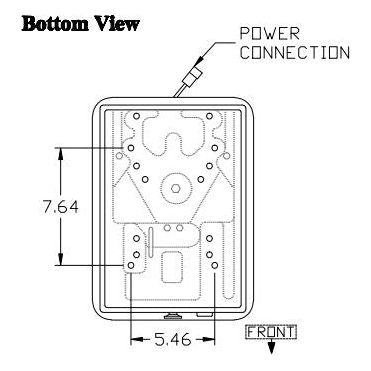

Bottom mount 5.46" side-to-side 7.64" front-to-back.
Please note applications may vary and you may have to drill new holes in existing mounting platform, or require bracket fabrication to install this suspension.
This Seat will fit a lot of models of AGRICULTURAL, TURF, CONSTRUCTION, COMMERCIAL, and INDUSTRIAL EQUIPMENT.
Item # AS129
pneumatic
