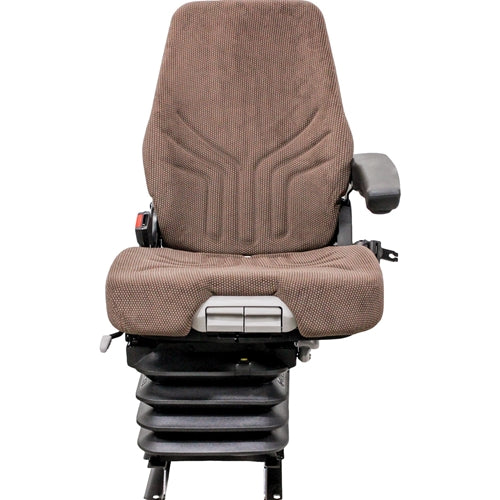

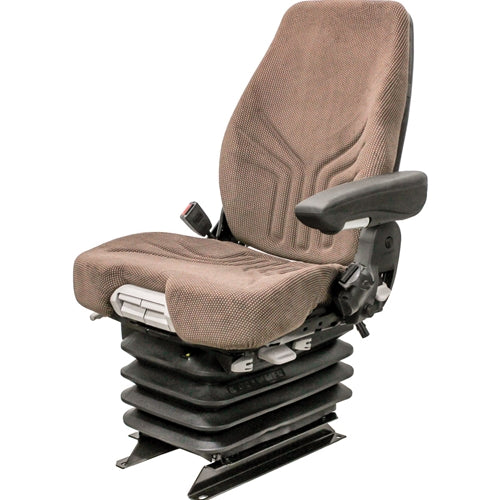

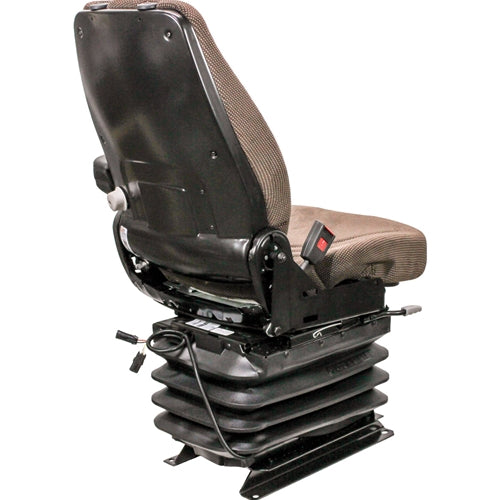

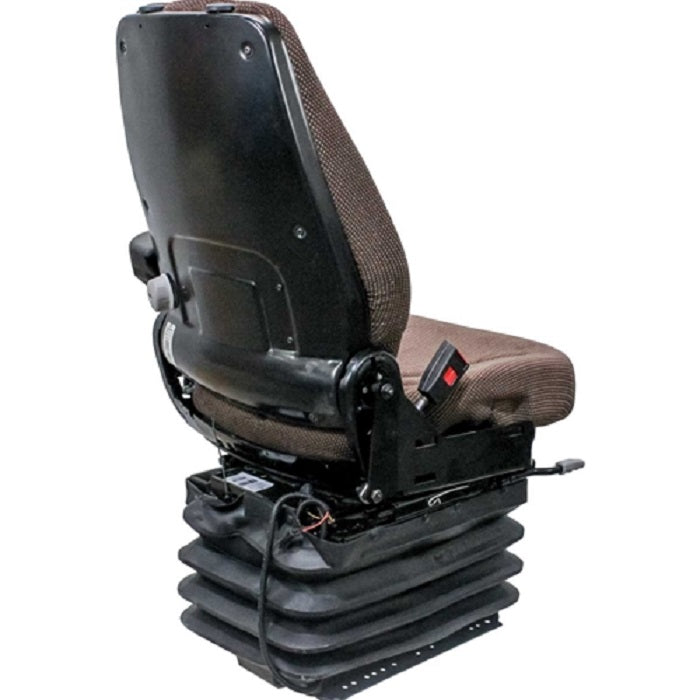

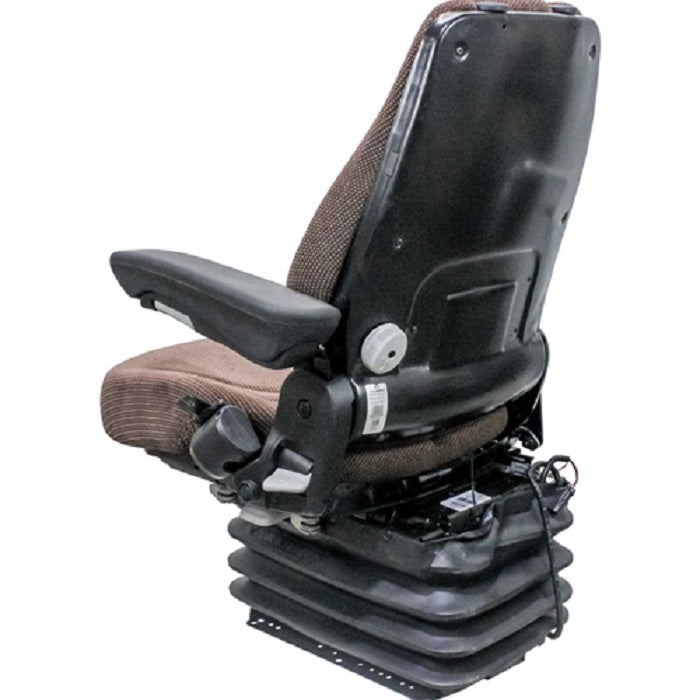

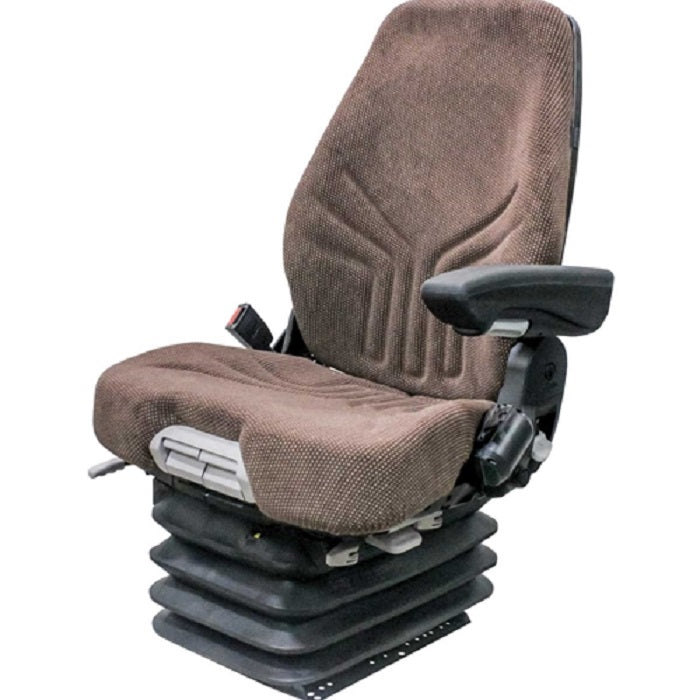

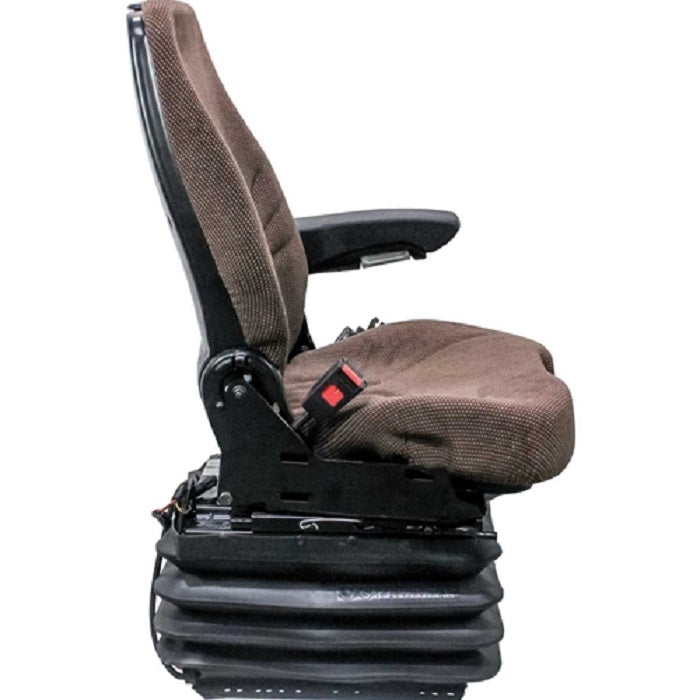

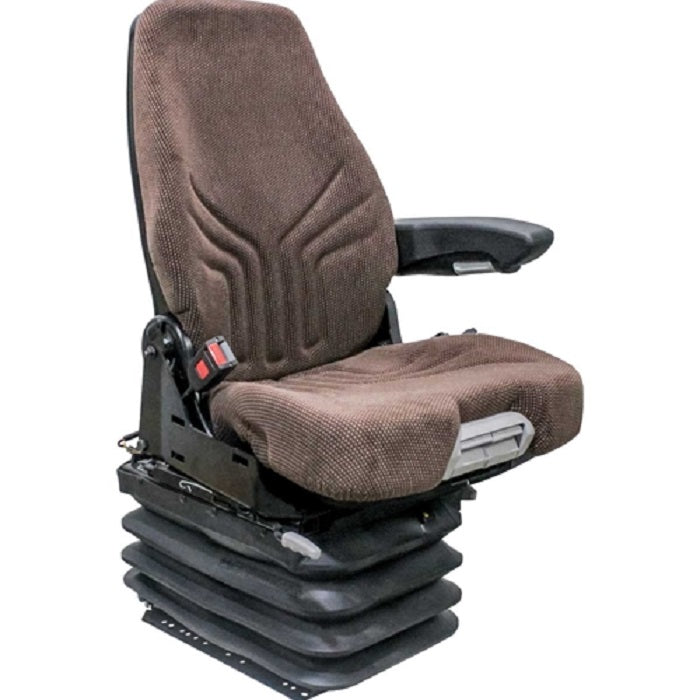

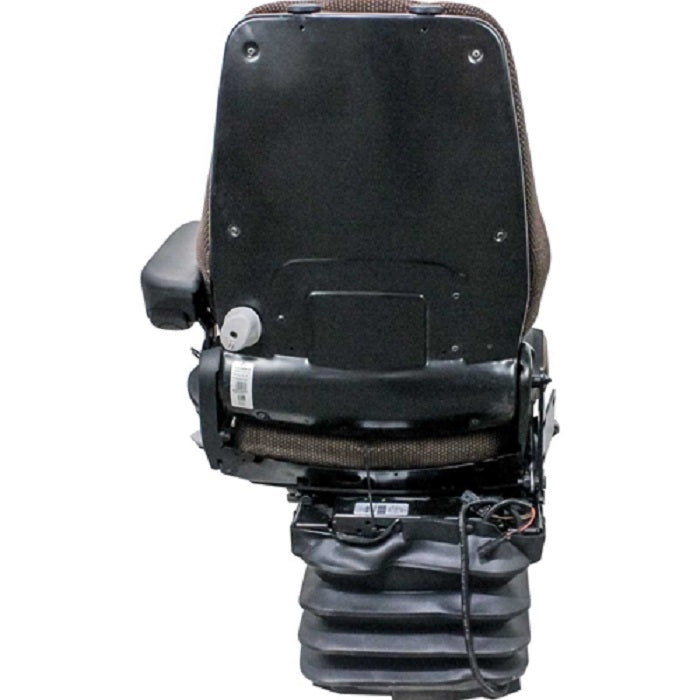

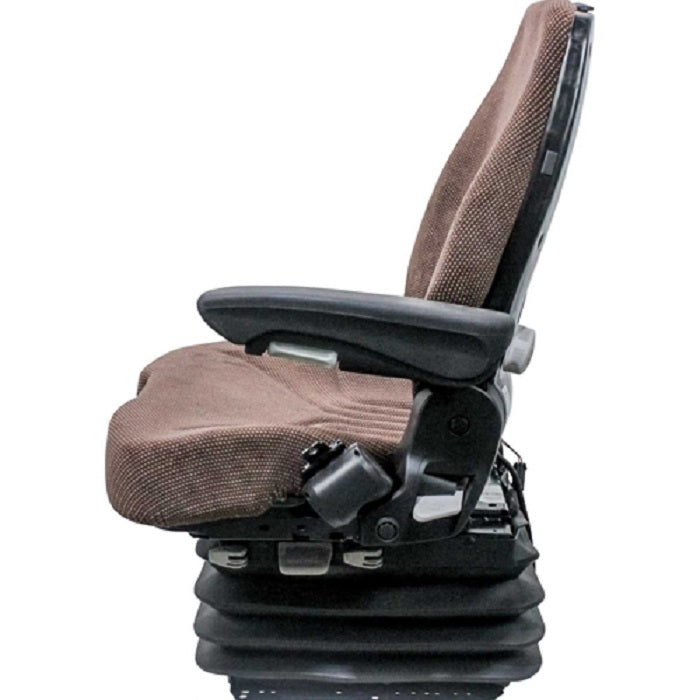

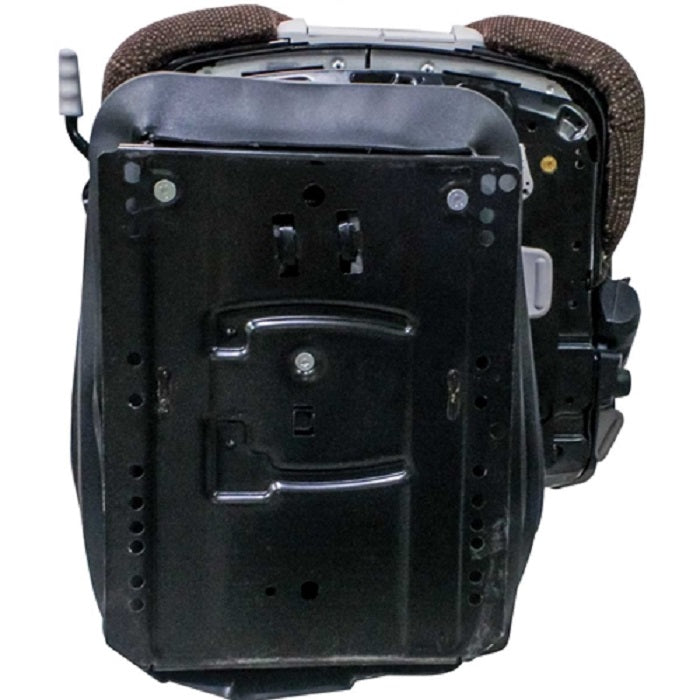

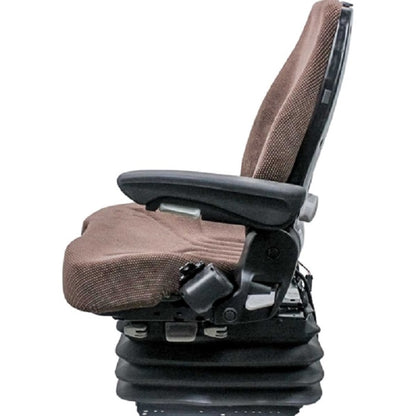

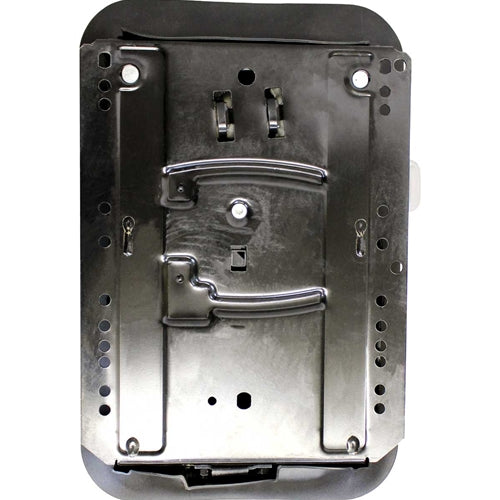

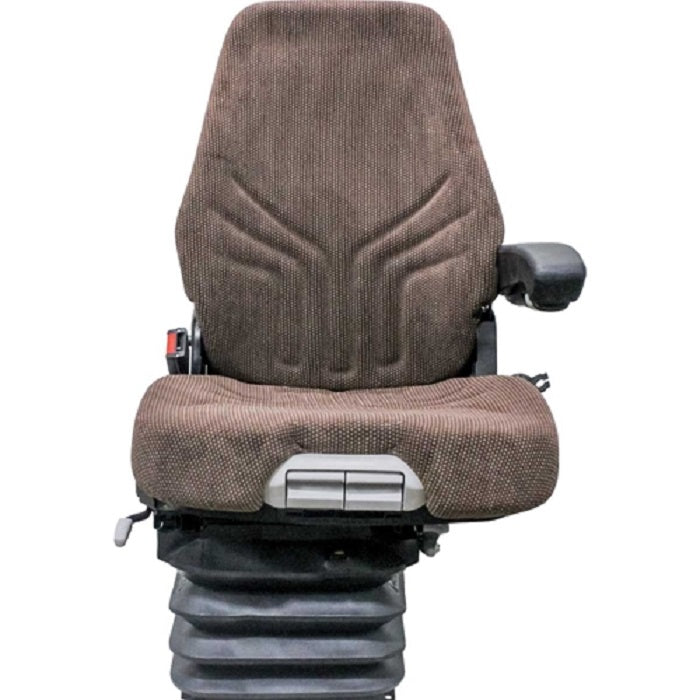

12v Air Suspension Seat for John Deere Harvester / Combine / Windrower

  • $1,595.98
    Unit price per
Shipping calculated at checkout.


Seat with Suspension for JD

For Multiple Applications Including But Not Limited To:

John Deere 9570STS, 9670STS, 9770STS, 9870STS, 9986, 9996, 7760, 7660, CP690, 7460 (with 748 Header), CS690, 7200, 7300, 7400, 7500, 7700, 7800, 7950, 7250, 7350, 7450, 7550, 7180, 7280, 7380, 7480, 7580, 7780, 7980, 3510, 3520, 4895, 4995, A400, D450, R450

Combines, Cotton Pickers, Cotton Strippers, Forage Harvesters, Sugar Cane Harvesters and Windrowers

This deluxe seat and air suspension assembly that replaces the original suspension seat and provides a smoother, more comfortable ride that will keep you riding in maximum comfort while enduring every type of rough terrain. The air suspension has a self-contained 12-volt compressor which wires directly to the tractor's electrical system.

Durable Brown Matrix Fabric covering
Air suspension with 12-Volt compressor and 7" stroke
Plush and spacious cushions for operator comfort
Adjustable mechanical lumbar support to help prevent lower back pain
Seat cushion depth adjustment
Seat cushion angle adjustment
Adjustable fold-up left-hand armrest
Right-hand command arm bracket
Air adjustment switch for individual fit and comfort
Fore/aft isolator absorbs jarring for extra comfort
Adjustable slide rails provide fore/aft adjustment
Minimum of 5.9" fore/aft adjustment with variable rails stop catch
Up to 3.1" height adjustment
100 - 285 lb weight adjustment
Comes with operator presence switch

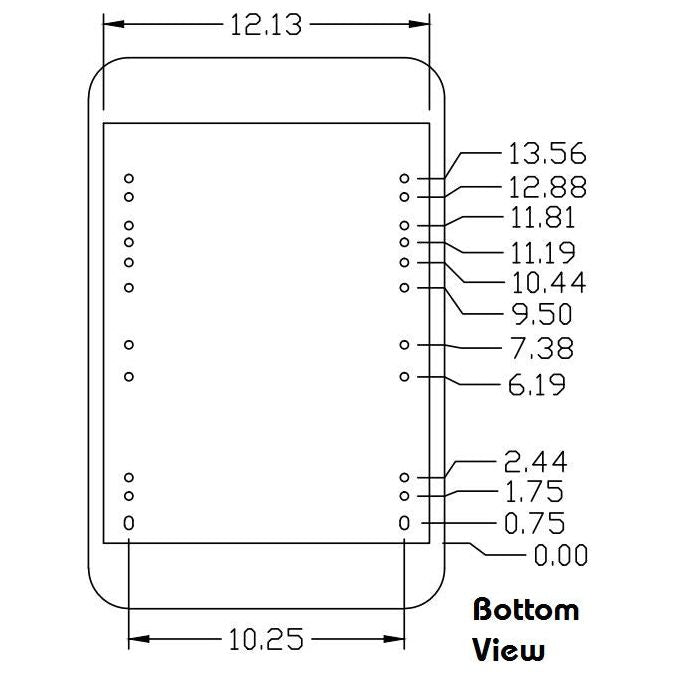

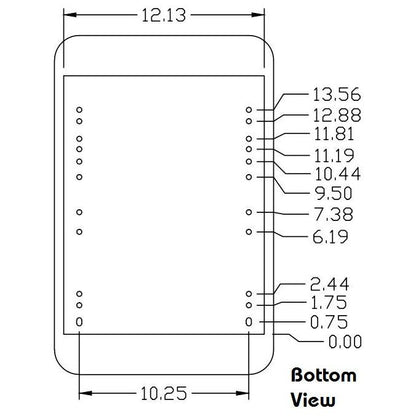

Please note some models may vary and you may have to drill new holes in existing mounting platform to install this seat.

This Seat will fit a lot of models of AGRICULTURAL, TURF, CONSTRUCTION, COMMERCIAL, and INDUSTRIAL EQUIPMENT.

Item # AS144

SW07983, MSG95BLV, MSG95 17339 20010, ST19, MSG95BLV-ASSY, A-MSG95BLV-ASSY, MSG95GRC-ASSY, A-MSG95GRC-ASSY, 17372, SW07984, SW07977, 20017, SW07977, SJ21079 1438635 5007 8400 Grammer MSG95G/742 AH227974, AXE48239 7993 8020
