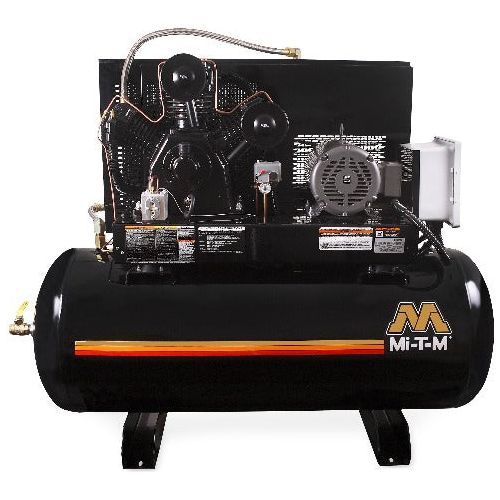

120-Gallon Two Stage Air Compressor (1p 230v) ADS-23110-120HM

The M Series air compressors are a great solution for the most demanding industrial applications. Available in many motor configurations and with either vertical or horizontal tank options.

Compressor Pump: Cast iron Two Stage compressor pump · Splash lubricated · Stainless steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor: Industrial low RPM motor · Magnetic start for thermal overload protection

Frame: Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Totally enclosed powder coated belt guard

Components: ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve

Limited Warranties:

• 1 Year Electric Motor
• 2 Year Pump Exchange

CFM @ 175 PSI  34.2

Horsepower/Motor 10.0 HP, 230V, 1Ø, 39.0A

Pump RPM 990

Tank Size 120-gallon

Bolt Down (L x W) 34.5 x 23.5 in.

Length 74.00 in. Width 26.50 in. Height 58.00 in.  Weight 811 Lb
