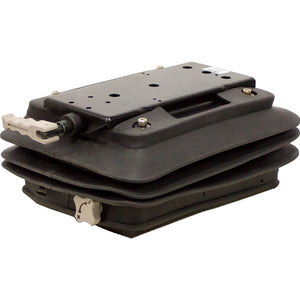

Narrow Compact Base Tractor Seat Mechanical Suspension for Pilot

Mechanical Seat Suspension for JD, AC, IH, FD, NH, MF, Cat, IR, CIH

For Multiple Applications Including But Not Limited To:

Pilot Seats in Tractors, Lawn Mowers & Small Equipment Applications.

Easily swap out the old or add this suspension in your equipment. Over time & with a lot of use, it is not uncommon for them to wear out or get damaged.

This Mechanical Suspension is a direct replacement for the original Pilot Mechanical Suspension for a boost in vibration reduction, making for a more comfortable ride in even the most demanding conditions

Ideal for smaller utility tractors

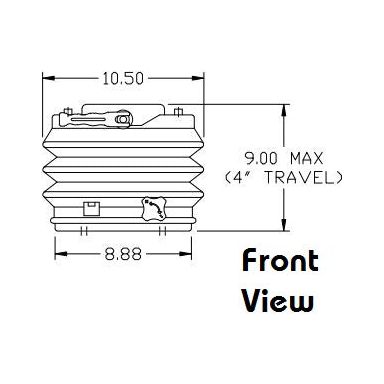

Base width of 8.85"
Compact mechanical suspension with heavy-duty shock absorber
Easy to operate ride control
Height adjustment
3.13" suspension travel
Weight adjustment
9" maximum height
Durable suspension cover to keep components free of dirt and dust

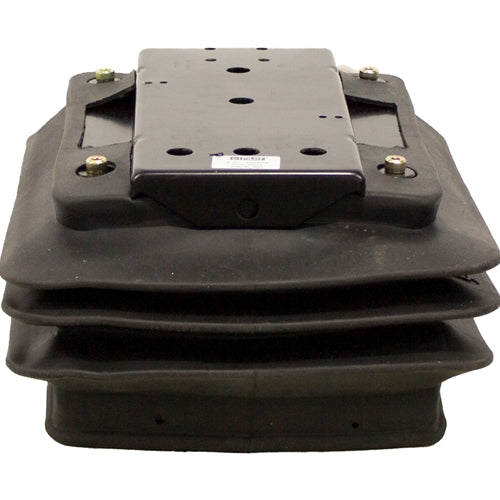

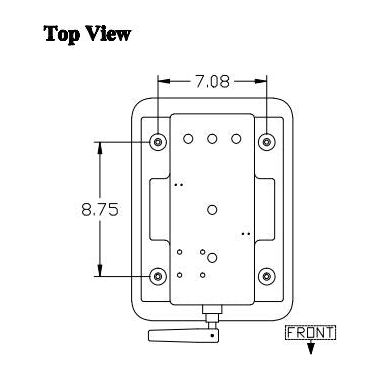

Top mount 7.08" side-to-side,  8-3/4" front-to-back.
Weight Adjustment 110 - 330 lbs. / 50 - 150kg

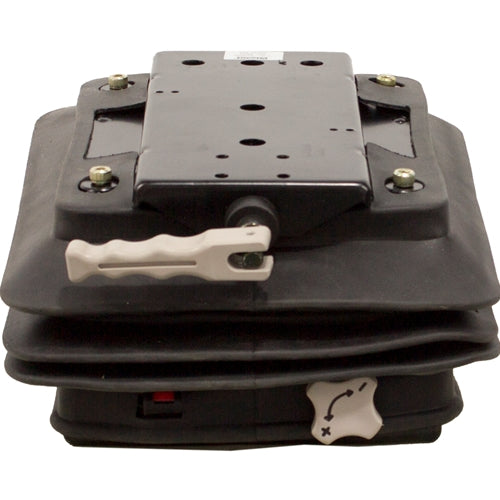

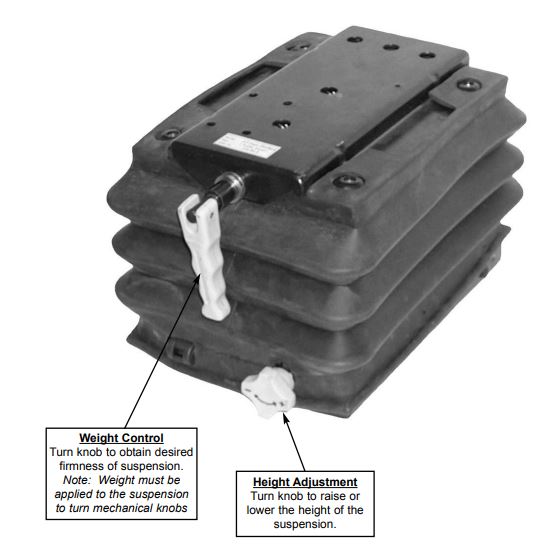

Gray handle lever in the middle is for adjusting the weight
Gray star shaped knob is to adjust suspension up or down

Please note some applications may require to drill new holes in existing mounting platform, or fabricate brackets to install this seat suspension.

This Seat Suspension will fit a lot of models of AGRICULTURAL, TURF, CONSTRUCTION, COMMERCIAL, and INDUSTRIAL EQUIPMENT.

Item # MS205

^{8079 TS1080SS 72-1030 721030 A-SSM100 SSM100-RAP SSM100-IRT A-SSM100-AI S830952-HYC S830952 TCA19757 TCA51087 MT40321433 SM80X 80X}
