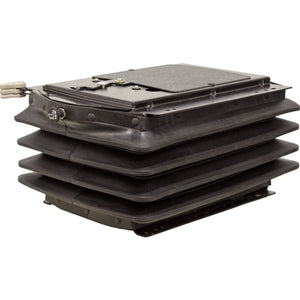

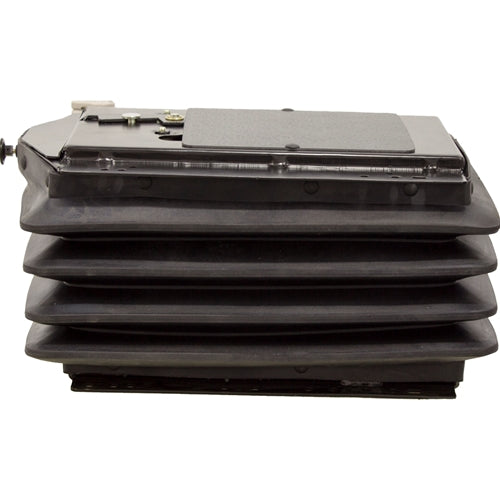

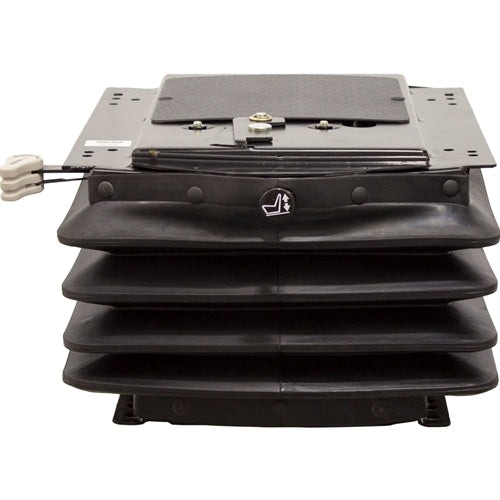

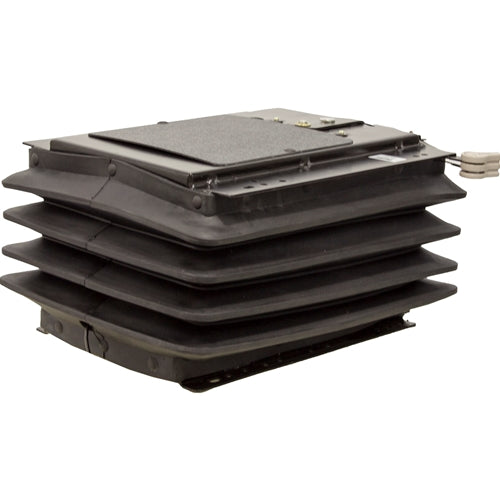

12v Tractor Seat Air Suspension

  • $958.95
    Unit price per
Shipping calculated at checkout.

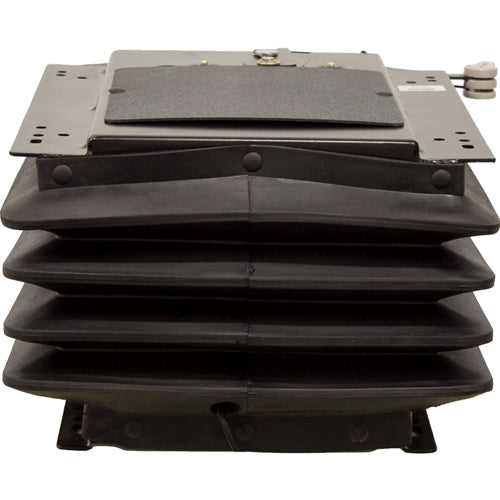

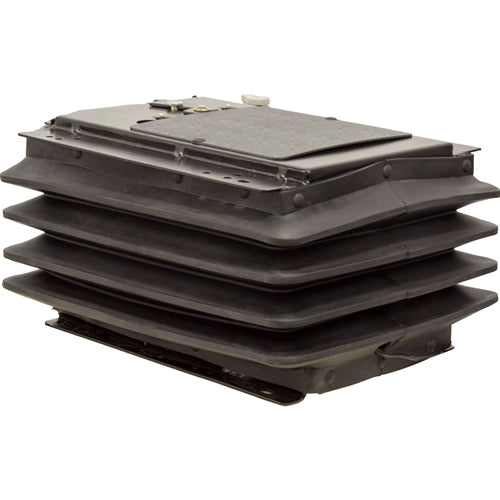

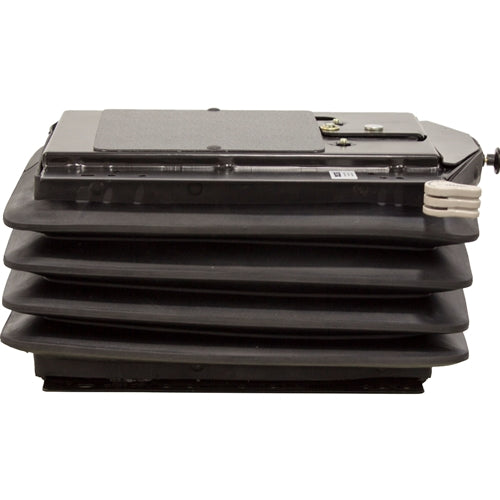

Seat Air Suspension (Wide Base) for JD, AC, IH, FD, NH, MF, IR, Cat, CIH

For Multiple Applications Including But Not Limited To:

Tractors, Implements, & Heavy Construction / Industrial equipment applications.

This Deluxe Air Suspension is a direct replacement to provide vibration reduction, and to improve comfort, performance and productivity in your ag or construction equipment, ensuring that you have the smoothest ride possible.

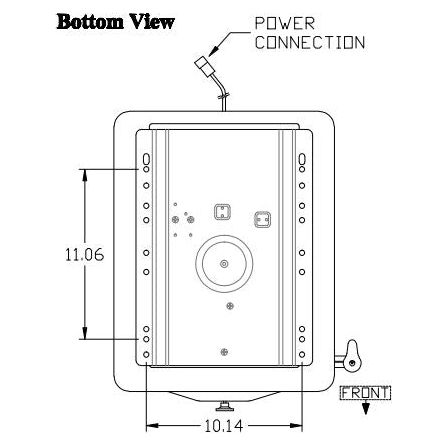

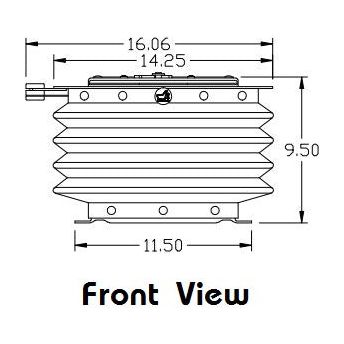

Base width of 11.5"
Self-contained 12-Volt compressor

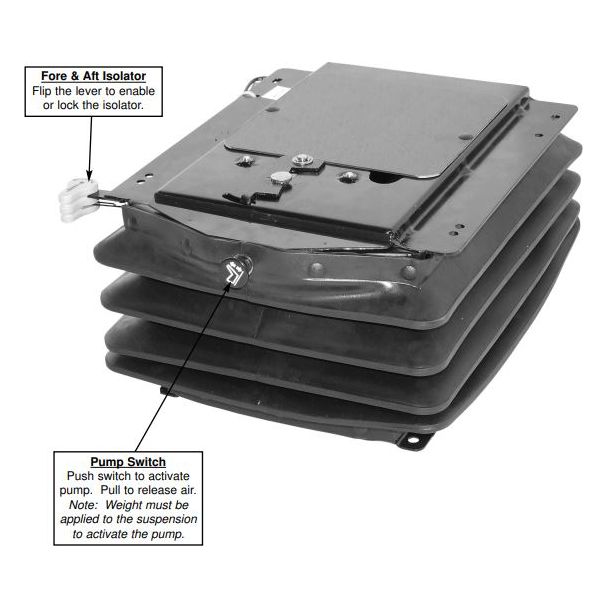

Easy to reach pump switch
Wide base provides stability
4" (100 mm) 12v air suspension w/ built in air compressor
Weight adjustment
9" maximum height
Automatic weight/pressure sensor eliminates over-inflation of the air bladder

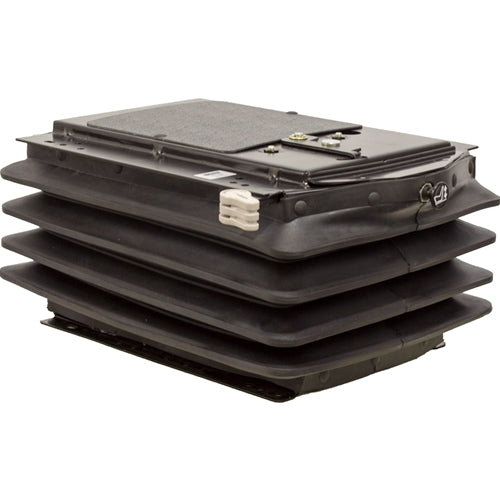

Fore/aft isolator can be locked or float to provide a smoother ride
Durable suspension cover to keep components free of dirt and dust

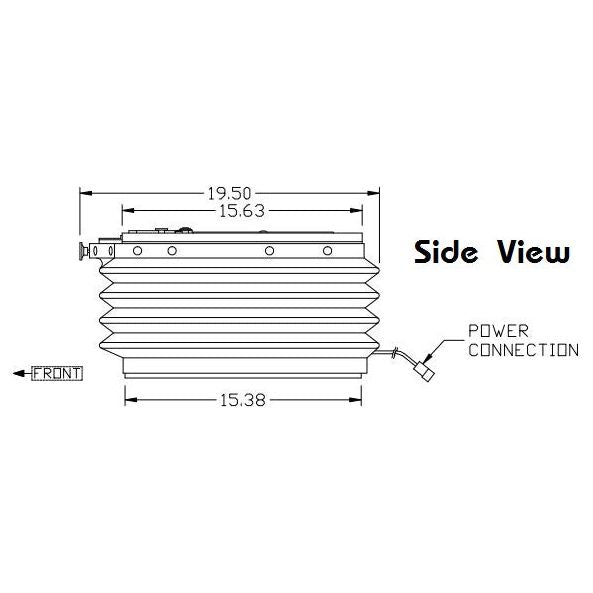

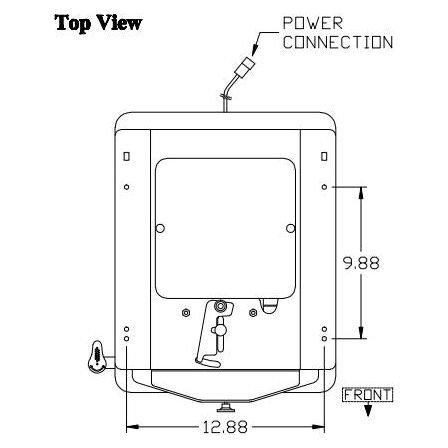

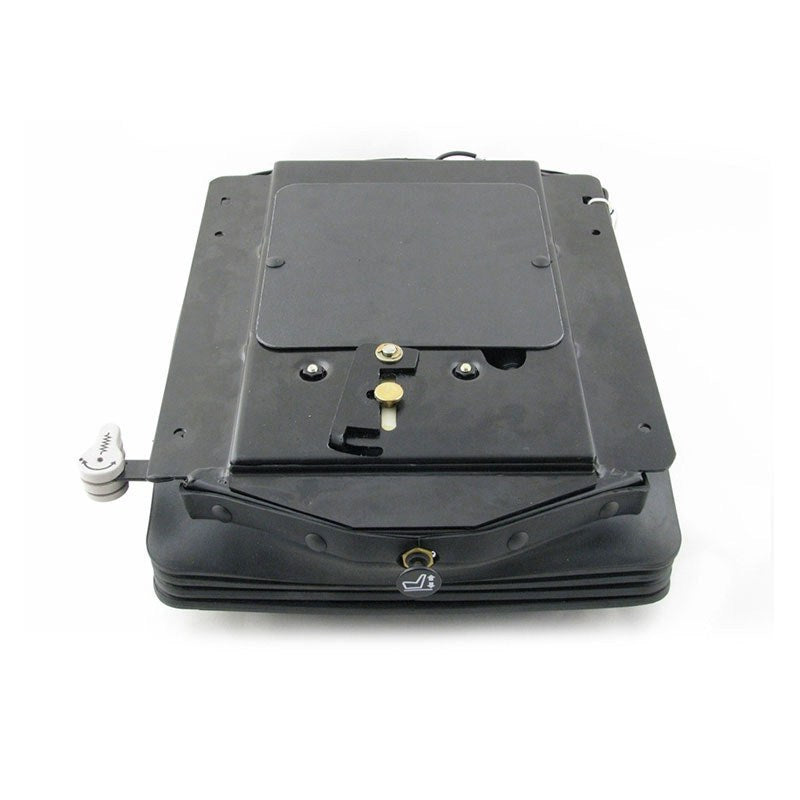

Top mounting 12.88" side-to-side, 9.88" front-to-back.
Slide Tracks Not Included

Weight Adjustment 110 - 330 lbs. / 50 - 150kg

Please note some applications may require to drill new holes in existing mounting platform, or fabricate brackets to install this seat suspension.

This Seat Suspension will fit a lot of models of AGRICULTURAL, TURF, CONSTRUCTION, COMMERCIAL, and INDUSTRIAL EQUIPMENT.

Item # AS130

A-MSG95741BNC, SW09001, SLP910166409, MSG95741, MSG95741BNC, A-MSG95741BNC-AI, MSG95741-A, SD021596, ATL09, HEV599255, MSG95741GRC, A-MSG95741GRC, A-MSG95741GRC-AI, SLP78-33854T, SW09002, A-MSG95GS, A-MSG95GS-AI, 20804, 12142, WN-8078, WN8078, SEN10-0122, SEN100122, A-MA2C12, SLP78-74778T, A-MA2C12-AI pneumatic
